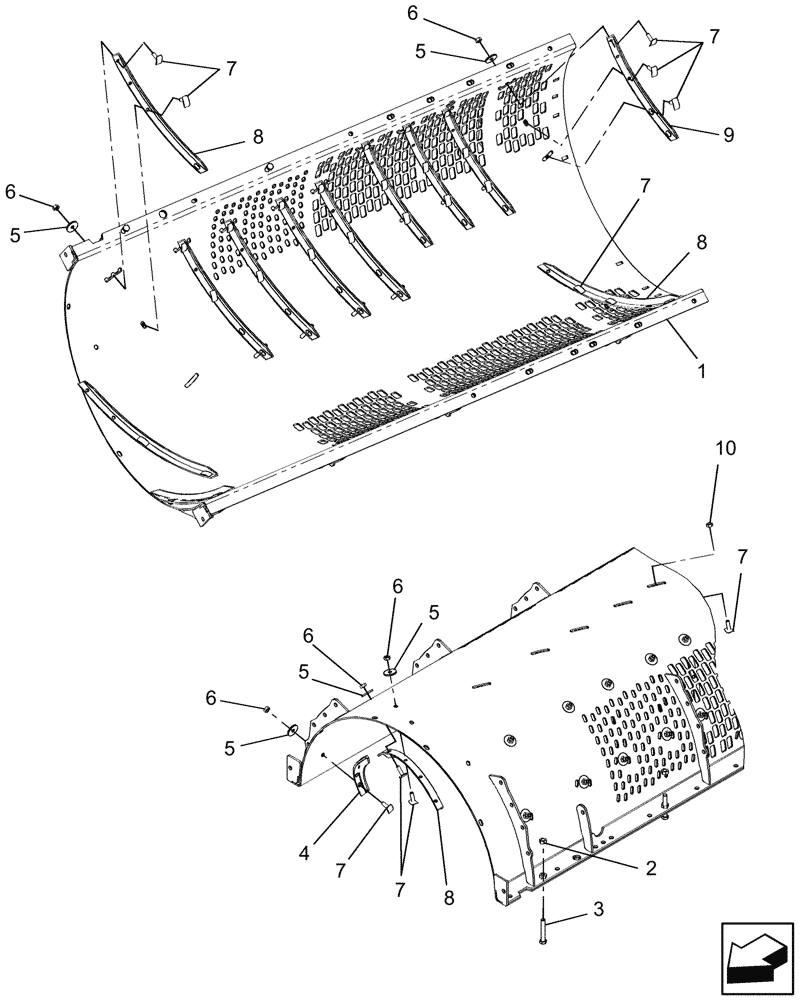

Запчасти Case IH 9230 (66.360.10) - ROTOR CAGE (66) - THRESHING

1

87391297

KIT

Extended Wear; Incl Refs 2 Thru 10

1шт.

1

84479722

CAGE

Standard Wear; Incl Refs 2 Thru 10

1шт.

1

87339502

CAGE

Standard Wear

1шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

87016227

BOLT,Hex, M12 x 80mm, Cl 8.8

M12x80

2шт.

4

87107892

ANGLE

Stiffener

1шт.

5

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

28шт.

6

100016

NUT,M10 x 1.5, Cl 8

28шт.

7

87106338

BOLT

33шт.

8

87717923

VANE

VANE

6шт.

9

87717924

VANE

VANE

5шт.

10

87698854

NUT,M10

5шт.

11

84535633

SERVICE KIT

kit includes ref 4 thru 10

1шт.
