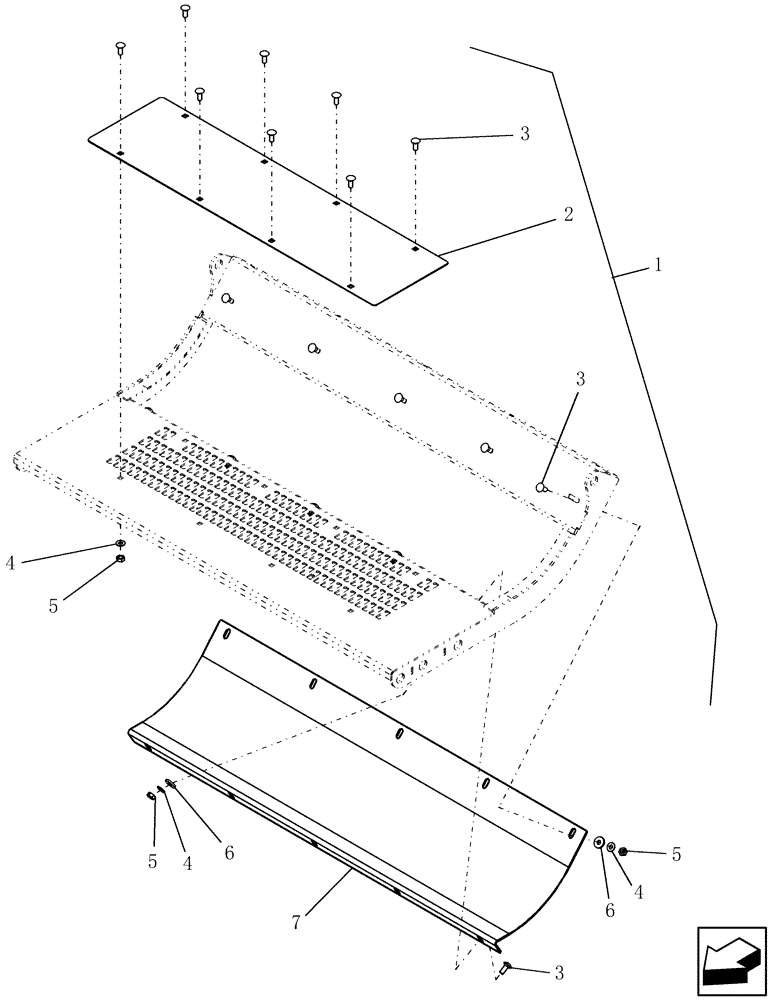

Запчасти Case IH 9230 (66.350.05) - GRATE COVER, BEATER DISCHARGE (66) - THRESHING

1

87587538

SERVICE KIT

Beater Cover; Incl Refs 2 Thru 7, Plus Instructions

1шт.

2

87606640

PLATE

1шт.

3

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

18шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

5

100016

NUT,M10 x 1.5, Cl 8

18шт.

6

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

10шт.

7

87587530

BEATER

Concave

1шт.
