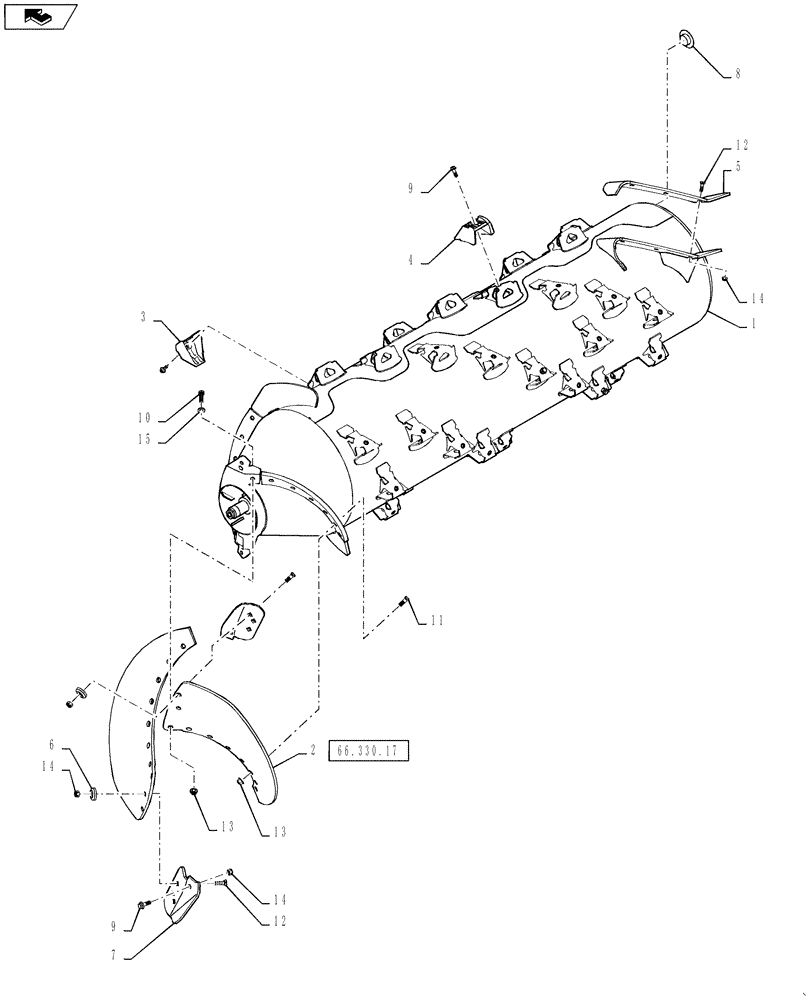

Запчасти Case IH 9230 (66.330.03) - ROTOR, SMALL TUBE (66) - THRESHING

1

87620394

ROTOR ASSY.

36 Element Grain & Corn

1шт.

1

87723898

ROTOR ASSY.

36 Element Rice

1шт.

1

84510490

ROTOR ASSY.

40 Element Grain & Corn

1шт.

2

87378268

AUGER FLIGHT

2шт.

3

87368807

RASP BAR

Extended Wear W/O Spike

28/32шт.

4

87368806

RASP BAR

Extended Wear W/ Spike

36шт.

5

87396383

PLATE ASSY.

Helical Kicker

2шт.

6

87315598

SHIELD

Bolt Protection

4шт.

7

87342923

WEAR PLATE

Rotor Flight

2шт.

8

87697368

PLASTIC PLUG

Rotor Dust Cover

1шт.

9

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

38шт.

10

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

11

87394282

PLOW BOLT,M16 x 55mm, Cl 10.9

M12

12шт.

12

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

M12 x 40mm, 10.9

10шт.

13

86512380

FLANGE NUT,M16

14шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

12шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.
