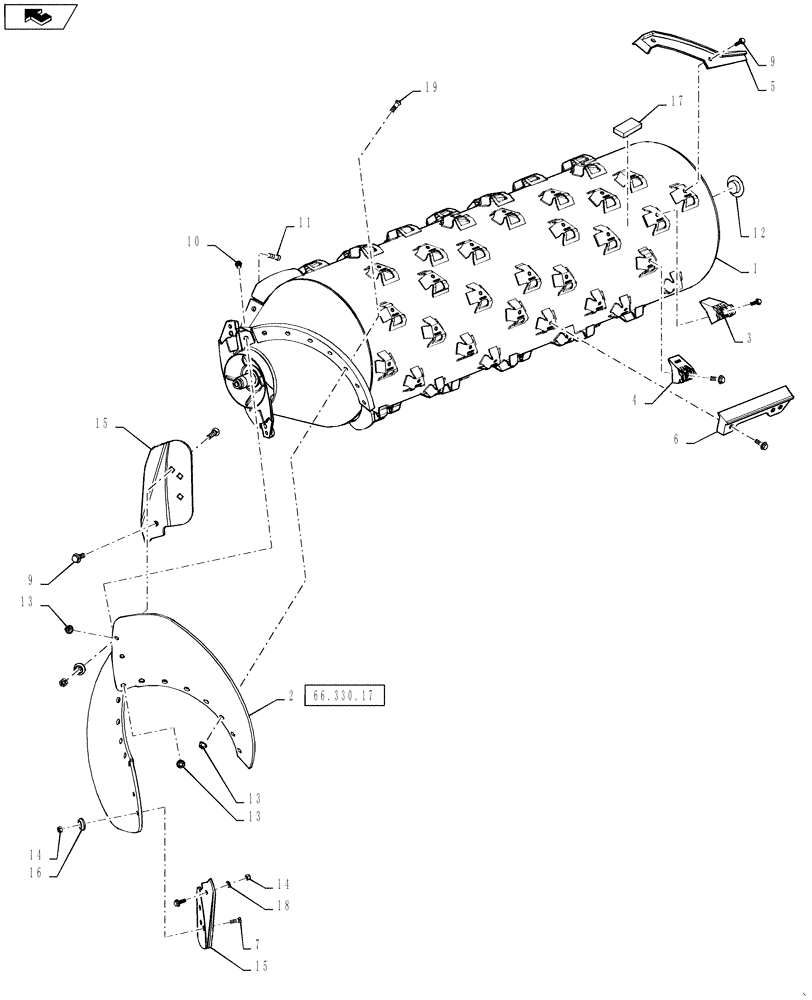

Запчасти Case IH 9230 (66.330.01) - ROTOR, LARGE TUBE (66) - THRESHING

1

84232195

ROTOR

Large Tube, 76 Element, Grain, W/ Separator Bars

1шт.

1

84348713

ROTOR

Large Tube, 76 Element, RICE

1шт.

1

84232194

ROTOR

Large Tube, 76 Element, GRAIN, ABR, W/ Separator Bars

1шт.

1

84348703

ROTOR

Large Tube, 76 Element, GRAIN, W/O Separator Bars

1шт.

1

87745154

ROTOR ASSY.

Large Tube, 76E GRAIN, ABR, W/O Separator bars

1шт.

2

NSS

NOT SOLD SEPARAT

2шт.

3

84164540

RASP BAR

RASP W/O SPIKE, NODULAR IRON, GRAIN W/ SEP BARS .... ORDER 64 FOR GRAIN W/0 SEP BARS

56шт.

3

278820A5

RASP BAR

RASP W/ SPIKE EXT WEAR, RICE

72шт.

3

278821A3

RASP BAR

RASP W/O SPIKE EXT WEAR, GRAIN ABR ... ORDER 64 FOR GRAIN ABR, W/O SEP BARS.

56шт.

4

278820A5

RASP BAR

RASP W/ SPIKE EXT WEAR, GRAIN

8шт.

5

86992048

BAR

Straight Bar, Ext Wear W/ RFC Coating, Helical Kicker

2шт.

5

1327676C1

BAR

Helical Kicker

2шт.

6

1318976C1

BAR

Straight Separator

4шт.

7

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

2шт.

8

86512380

FLANGE NUT,M16

16шт.

9

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

10

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

11

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

6шт.

12

87697368

PLASTIC PLUG

1шт.

13

86512380

FLANGE NUT,M16

14шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

6шт.

15

87342923

WEAR PLATE

1шт.

16

87315598

SHIELD

4шт.

17

203960H1

COUNTERWEIGHT

3+/-шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

19

87281818

BOLT,M16 x 2.0 x 65mm, Cl 10.9

M16 x 2 x 65mm

14шт.
