Запчасти Case IH 9230 (60.150.03) - GEARBOX, FEEDER, CONVEYOR DRIVE, WITHOUT ROCK TRAP (60) - PRODUCT FEEDING

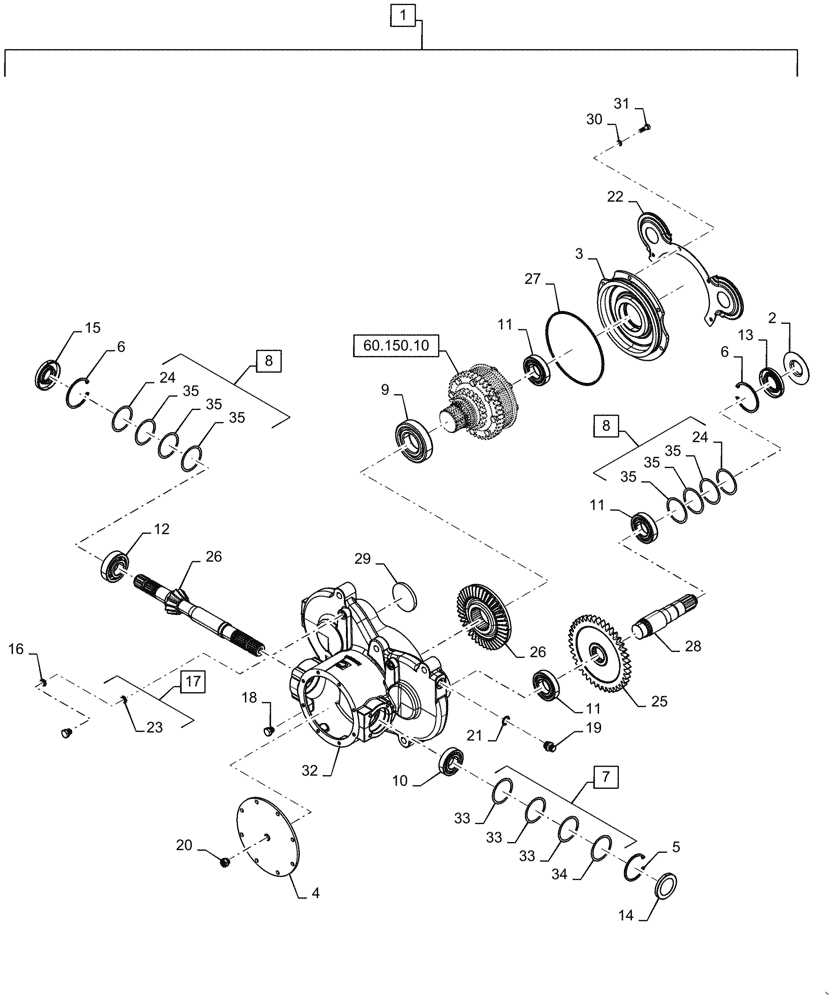

Схема запчастей Case IH 9230 - (60.150.03) - GEARBOX, FEEDER, CONVEYOR DRIVE, WITHOUT ROCK TRAP (60) - PRODUCT FEEDING
60.150.10
6
3
5
19
35
33
11
1
22
27
10
12
20
2
4
13
16
33
8
18
34
32
35
9
11
21
26
33
23
6
25
35
17
14
31
7
28
35
35
26
30
8
15
24
24
29
35
11

Артикул

Название

Примечание

Количество

1

47534014

GEARBOX

Feeder/Header Drive, Incl 2 - 36 Non Rock Trap

1шт.

1

47534014R

REMAN-GEARBOX

Reman -Gearbox -- Feeder/Header Drive, Incl 2 - 36 Non Rock Trap

1шт.

1

47534014C

CORE-GEARBOX

Return Number

1шт.

1

84224787R

REMAN-GEARBOX

Feeder/Header Drive, Incl 2 - 36

1шт.

1

84224787C

CORE-GEARBOX

Return Number

1шт.

2

87282006

GUARD

Shield

1шт.

3

87696846

COVER

Gearbox, Rear

1шт.

4

87282008

COVER

Gearbox, Front

1шт.

5

370018

SNAP RING,M72, Internal

1шт.

6

300633

SNAP RING,M80, Internal

2шт.

7

87282023

SHIM KIT

62mm ID x 72mm OD, Incl 33 - 34

1шт.

8

87282025

SHIM KIT

72mm ID x 80mm OD, Incl 24, 35

2шт.

9

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

10

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

11

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

3шт.

12

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

13

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

40mm ID x 80mm OD x 10mm Thk

1шт.

14

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

35mm ID x 72mm OD x 10mm Thk

1шт.

15

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

35mm ID x 80mm OD x 12mm Thk

1шт.

16

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

17

86611704

PLUG,Hex, M14 x 1.5 ORB

Hex, M14 x 1.5 ORB, Incl 23

2шт.

18

87282043

MAGNETIC PLUG

Oil Drain

1шт.

19

87282044

PLUG,M18 x 1.5, 28mm L

Breather, Pressure Relief

1шт.

20

87282045

SIGHTGLASS

M18 x 1.5 x 22mm OD x 18mm OAL

1шт.

21

42283

SEALING RING

18mm ID x 24mm OD x 1.5mm Thk

1шт.

22

47510325

BRACKET

Feeder/Header Gearbox Mount

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

24

87039411

WASHER,72mm ID x 80mm OD x 0.15mm Thk

4шт.

25

87696844

GEAR

Driven, Conveyor, 40 Tooth

1шт.

26

87282018

GEAR SET

13 Tooth/40 Tooth

1шт.

27

87345122

O-RING,0.139" Thk x 7.984" ID, -266, Cl 7, 75 Duro

1шт.

28

87282003

SHAFT

Conveyor Drive

1шт.

29

87282017

PLUG,80mm OD x 10mm Thk

1шт.

30

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

14шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

14шт.

32

47452971

TRANSMISSION HOUSING

Feeder/Header Gearbox

1шт.

33

906070R1

SHIM,M62 x 72mm OD x 0.5mm Thk

2шт.

33

906069R1

SHIM,M62 x 72mm OD x 0.3mm Thk

3шт.

33

906068R1

SHIM,M62 x 72mm OD x 0.1mm Thk

4шт.

34

87039410

SHIM,M62 x 72mm OD x 0.15mm Thk

4шт.

35

906073R1

SHIM,M72 x 80mm OD x 0.5mm Thk

2шт.

35

906074R1

SHIM,M72 x 80mm OD x 0.3mm Thk

3шт.

35

906075R1

SHIM,M72 x 80mm OD x 0.1mm Thk

4шт.

Выбрано товаров: 43
