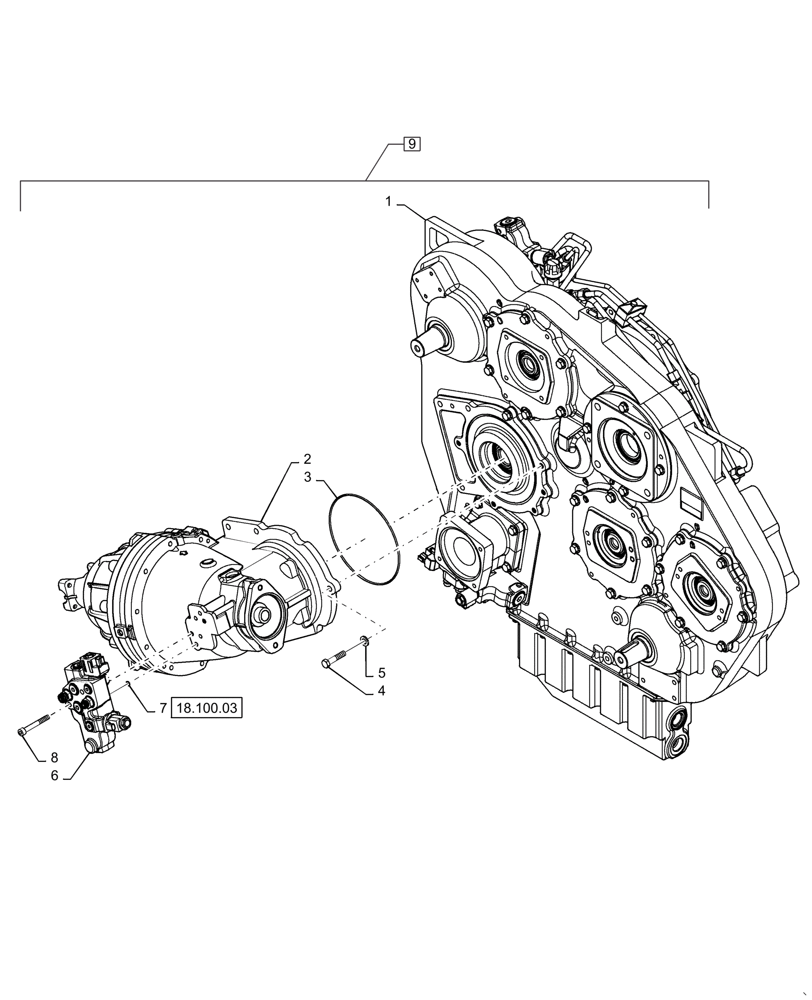

Запчасти Case IH 9230 (60.150.01[02]) - GEARBOX, FEEDER/HEADER, W/PTO, VARIABLE SPEED (60) - PRODUCT FEEDING

1

84313034

PTO

Variable Speed 72/8230

1шт.

1

84313039

PTO

Variable Speed 9230

1шт.

1

47599307

PTO

9230 Service Only

1шт.

2

86998844

GEARBOX

1шт.

2

86998844R

REMAN-TRANSMISSION

Reman for New PN 86998844

1шт.

2

86998844C

CORE-TRANSMISSION

Return Number

1шт.

3

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

4

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

5шт.

5

87016609

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

6

86981235

CONTROL VALVE

Variable

1шт.

7

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

8

84056630

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

9

84313043

GEARBOX

Assy, Incl 1 - 8

1шт.
