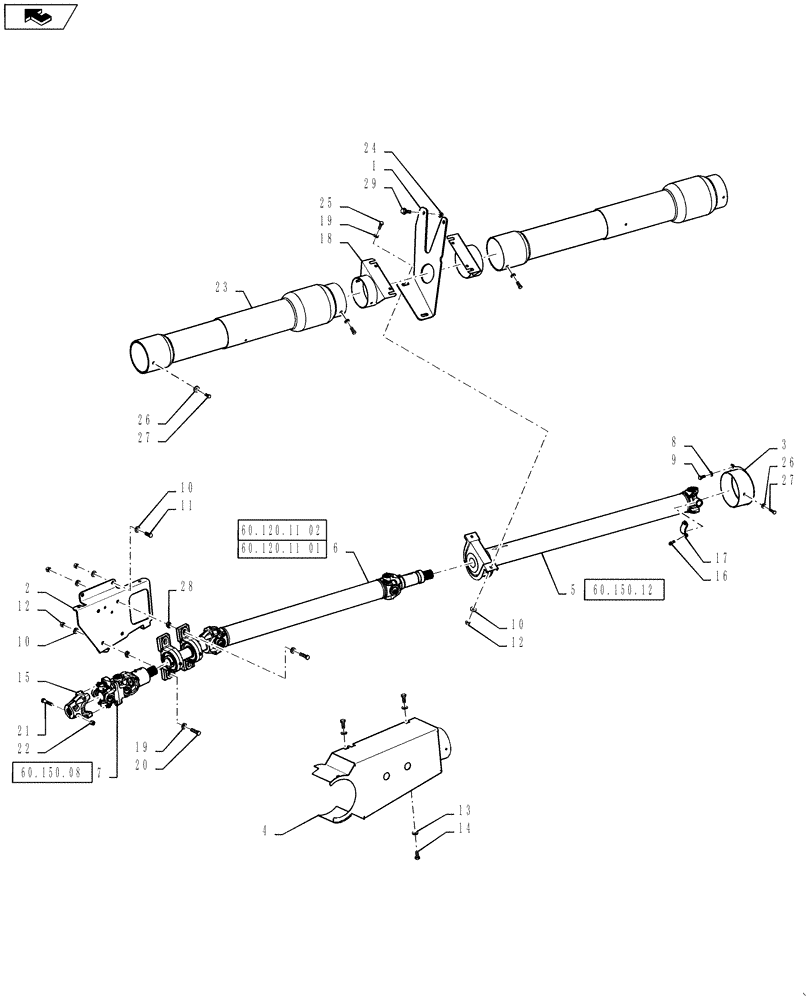

Запчасти Case IH 9230 (60.120.10) - DRIVE SHAFT, FEEDER/HEADER (60) - PRODUCT FEEDING

1

87106570

SUPPORT

1шт.

2

84310960

BRACKET

1шт.

3

87673747

SHIELD

Variable Speed

1шт.

3

87673749

SHIELD

Fixed Speed

1шт.

4

87708304

SHIELD

1шт.

5

84362297

DRIVE SHAFT

Variable Speed

1шт.

5

84362295

DRIVE SHAFT

Fixed Speed

1шт.

6

84362293

DRIVE SHAFT

1шт.

7

84362299

DRIVE SHAFT

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

9

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

12

9706685

NUT,M12 x 1.75, Cl 8

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

87109469

YOKE

1шт.

16

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

4шт.

17

9672925

SECURING STRAP

8шт.

18

87673744

BRACKET

2шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

21

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

2шт.

22

87021758

NUT,M12 x 1.75, Cl 10

2шт.

23

87106571

SHIELD

2шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

4шт.

28

84475437

SPACER

4шт.

29

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.
