Запчасти Case IH 9230 (60.110.10) - GEARBOX, HEADER (60) - PRODUCT FEEDING

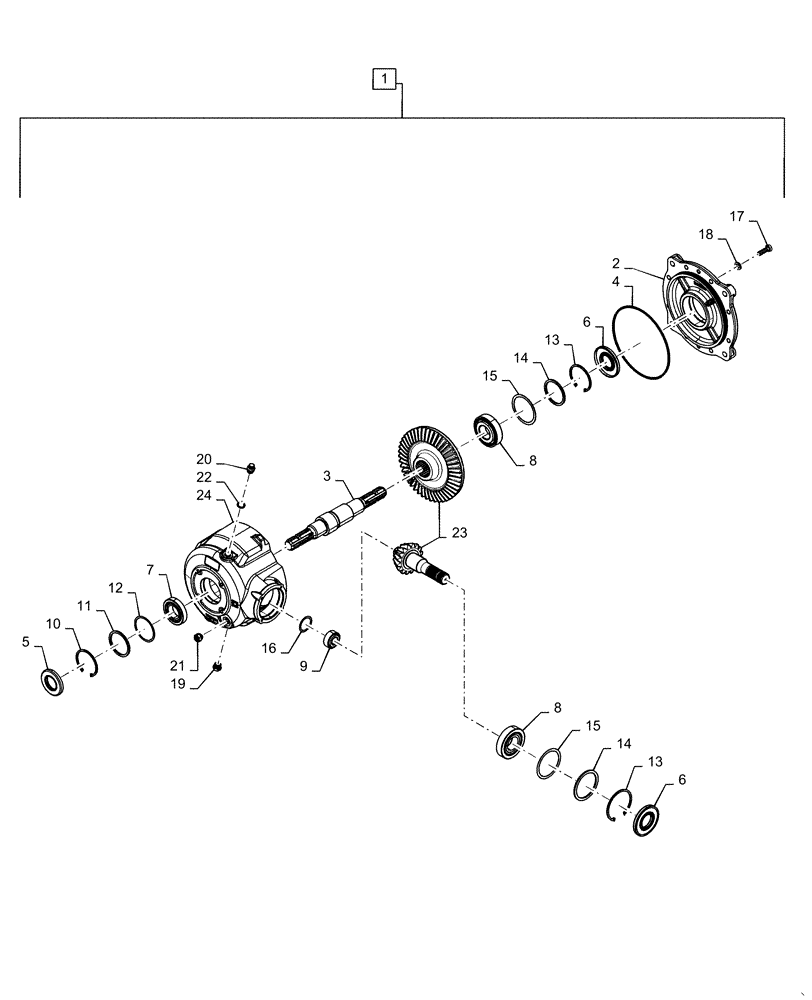

Схема запчастей Case IH 9230 - (60.110.10) - GEARBOX, HEADER (60) - PRODUCT FEEDING
11
10
18
14
13
4
5
24
22
14
3
6
15
7
23
2
8
17
21
16
13
8
12
19
20
6
1
15
9

Артикул

Название

Примечание

Количество

1

87610913

GEARBOX ASSY

Header Drive, Incl 2 - 24

1шт.

1

87610913R

REMAN-GEARBOX

Header Drive

1шт.

1

87610913C

CORE-GEARBOX

Return Number

1шт.

2

87449555

COVER

Gearbox

1шт.

3

87449556

SHAFT

Output

1шт.

4

238-5271

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

1шт.

5

87610910

OIL SEAL,45mm ID x 85mm OD x 10mm Thk

1шт.

6

87610911

OIL SEAL,45mm ID x 100mm OD x 10mm Thk

45mm ID x 100mm OD x 10mm Thk

2шт.

7

86018152

BEARING ASSY,45mm ID x 85mm OD x 20.75mm W

45mm ID x 85mm OD x 20.75mm Thk

1шт.

8

87449570

BEARING ASSY,45mm ID x 100mm OD x 27.25mm W

2шт.

9

81864433

BEARING ASSY,24.99mm ID x 52mm OD x 22.2mm W

25mm ID x 52mm OD x 18mm Thk

1шт.

10

370021

SNAP RING,M85 x 3mm Thk, Internal

1шт.

11

87449557

SPACER,74mm ID x 84.8mm OD x 4mm L

1шт.

12

87449564

SHIM KIT

75mm ID x 85mm OD

1шт.

13

370026

SNAP RING,M100 x 3mm Thk, Internal

2шт.

14

87449558

SPACER,85.2mm ID x 99.8mm OD x 4mm L

2шт.

15

87449569

SHIM KIT

85mm ID x 100mm OD

2шт.

16

87449559

SHIM KIT

42mm ID x 52mm OD

1шт.

17

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

8шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

19

87282043

MAGNETIC PLUG

M18

1шт.

20

87282044

PLUG,M18 x 1.5, 28mm L

Breather, Pressure Relief

1шт.

21

87282045

SIGHTGLASS

Plug, M18 x 1.5 x 22mm OD x 18mm OAL

1шт.

22

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

23

87449573

BEVEL GEAR

Set, 16 Tooth/ 45 Tooth

1шт.

24

87449554

HOUSING

Header Drive

1шт.

Выбрано товаров: 26
