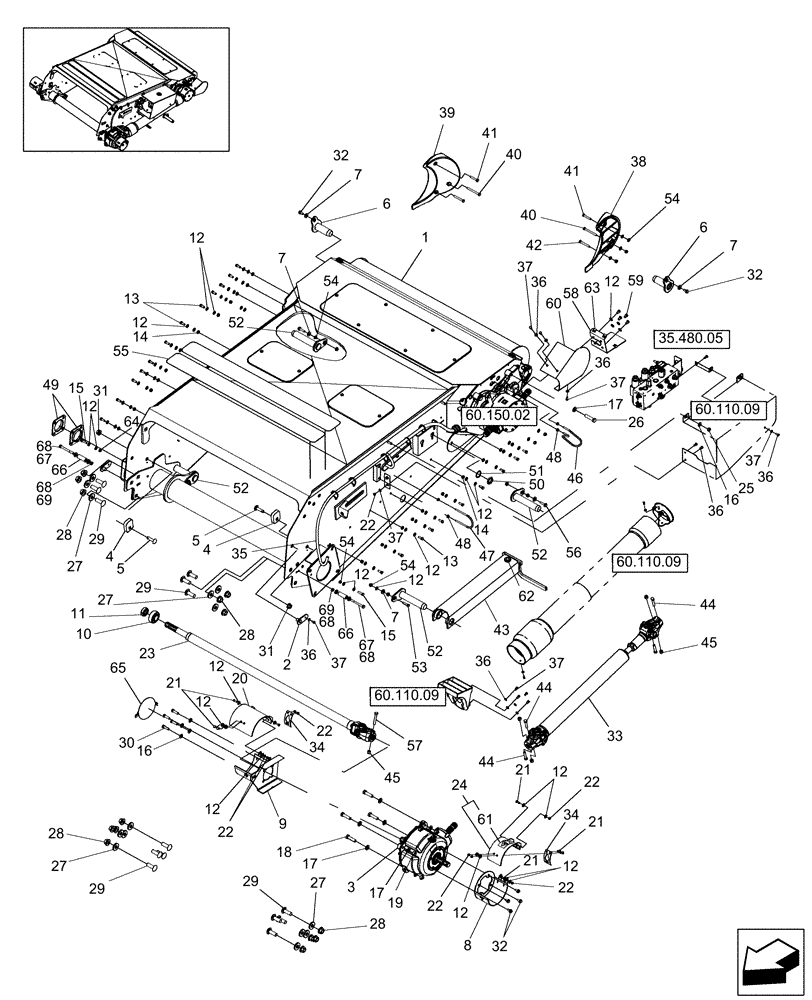

Запчасти Case IH 9230 (60.110.08) - FEEDER FRAME (60) - PRODUCT FEEDING

1

84387515

HOUSING

Housing; Not being offered as Assy

1шт.

2

87106719

BRACKET

2шт.

3

87610913

GEARBOX ASSY

1шт.

4

87282452

PLATE

2шт.

5

87281691

BOLT,Special Bolt, M16 x 2 x 68.9mm OAL 10mm W Flat

2шт.

6

87281673

PIN,44mm OD x 127mm L

2шт.

7

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

8шт.

8

87108951

SHIELD

1шт.

9

87108942

SHIELD

1шт.

10

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

11

45393

COLLAR

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

83шт.

13

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

24шт.

14

100016

NUT,M10 x 1.5, Cl 8

30шт.

15

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

17

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

18

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

4шт.

19

100020

NUT,M16 x 2.0, Cl 8

4шт.

20

87108949

SHIELD

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

22

9706690

NUT,M8 x 1.25, Cl 8

8шт.

23

86999167

SHAFT

1шт.

24

87108944

SHIELD

1шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

120092

BOLT,M16 x 70mm, Cl 8.8

4шт.

27

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

28

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

29

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

30

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

31

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

32

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

33

86999166

SHAFT

1шт.

34

86638316

LATCH

2шт.

35

84294488

WIRE HARNESS

Feeder, Electric

1шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

37

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

38

87662508

DEFLECTOR

L.H.

1шт.

39

87662509

DEFLECTOR

R.H.

1шт.

40

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

41

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

42

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

43

87564959

CHANNEL

Feeder Lift, Standard

1шт.

43

87732739

CHANNEL

Feeder Lift, Heavy Duty

1шт.

Also Included in Kits 84134532 (EU) & 87751028 (NA)

1шт.

44

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

4шт.

45

87021758

NUT,M12 x 1.75, Cl 10

5шт.

46

87283141

RETAINING WIRE

1шт.

47

87108395

U-BOLT,M8 x 1.25, 145mm OAL x 95mm W

1шт.

48

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

49

86974037

FLANGE

2шт.

50

86619907

NUT,1.6875"-18

1шт.

51

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

52

87282445

PIN,41.27mm OD x 218mm L

Yellow Chrome

4шт.

52

87471285

PIN ASSY.,202mm OAL

Black Chrome

4шт.

53

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

54

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

55

86995792

PAD,125mm W x 1270mm L

2шт.

56

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

57

87301326

BOLT,M12 x 1.75 x 82.68mm, Cl 10.9

1шт.

58

84354292

BRACKET

1шт.

59

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

8шт.

60

84354290

PROTECTION PLATE

1шт.

61

84004742

DECAL

1шт.

62

87107921

GROMMET,19mm ID x 41mm OD x 30mm Thk

1шт.

63

86508354

PUSH-ON NUT,M8 x 1.25

3шт.

64

86500689

NUT,M10 x 1.5, Cl 10

2шт.

65

84164490

COVER

1шт.

EU

1шт.

66

87484408

SPACER,12.9mm ID x 25.4mm OD x 65.5mm L

2шт.

67

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

4шт.

68

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

69

337475

NUT,M12, Cl 10

2шт.
