Запчасти Case IH 9230 (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP (60) - PRODUCT FEEDING

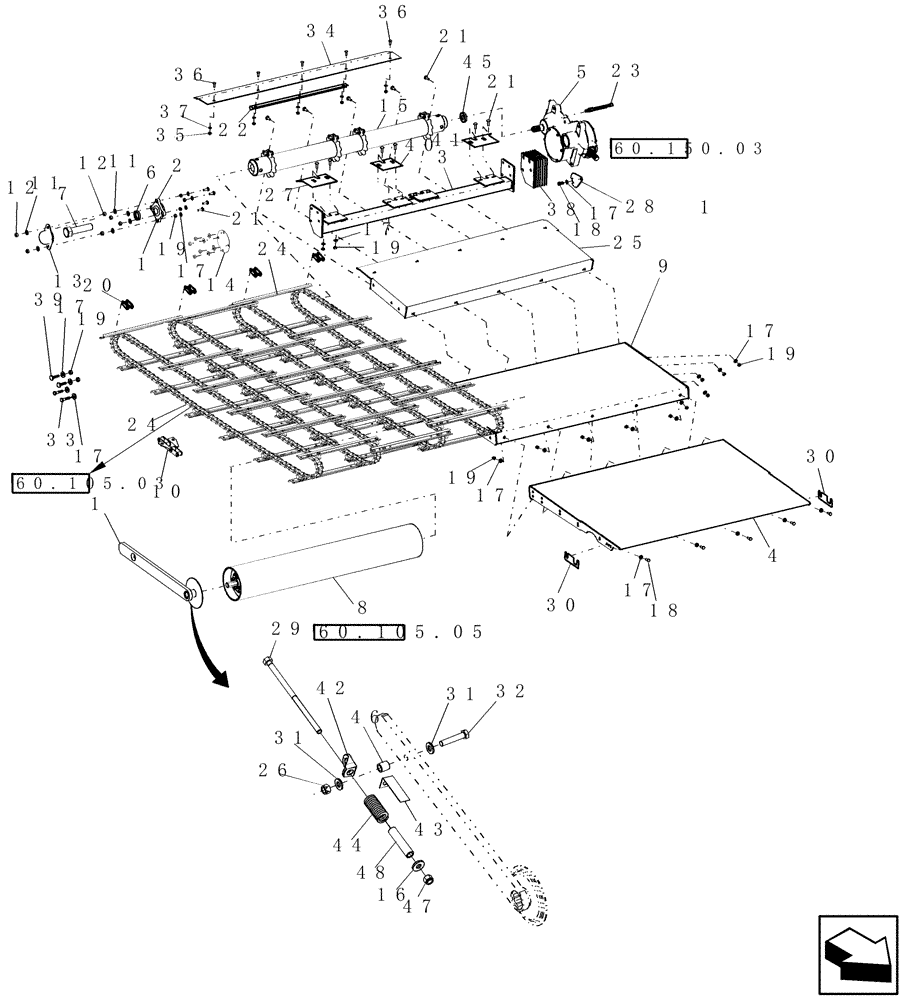

Схема запчастей Case IH 9230 - (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP (60) - PRODUCT FEEDING
1
17
2
34
17
21
25
47
30
17
60.105.05
60.150.03
43
14
40
29
31
12
5
23
24
37
19
24
44
41
1
6
26
30
17
19
8
60.105.03
32
21
15
35
48
45
1
17
27
22
12
4
10
46
39
38
13
28
9
16
7
36
19
18
21
11
42
31
11
33
3
36
18
20
19
17
19
17
17

Артикул

Название

Примечание

Количество

1

87660200

ARM ASSY.

2шт.

2

86995212

BEARING ASSY

1шт.

3

84161169

SUPPORT ASSY.

1шт.

4

84140379

FLOOR

1шт.

5

84224787

GEARBOX

1шт.

84224787R

REMAN-GEARBOX

7230,8230,9230,All TIER 4 (3/12-)

1шт.

84224787C

CORE-GEARBOX

Return Number

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

NSS

NOT SOLD SEPARAT

See Page 60.105.05

1шт.

9

87282537

FLOOR

1шт.

10

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

86996082

COVER

1шт.

14

86995710

COVER

1шт.

15

84414906

SPROCKET

Order Kit 47454883

1шт.

16

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

31шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

24шт.

20

87625526

LINK,41.4mm Pitch

4шт.

21

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

17шт.

22

87537644

CHANNEL

1шт.

23

87662555

SENSOR

Feeder Speed

1шт.

24

84179642

CHAIN,Feeder, 113 Links x 41.4mm = 4678.2mm

Standard; Z Shaped Slat

1шт.

25

87730307

FLOOR

1шт.

26

86000441

NUT,M16 x 2.0, Cl 8

2шт.

27

84158112

PLATE

R.H.

1шт.

28

87281862

PLATE

1шт.

29

84155550

THREADED ROD

2шт.

30

87537643

SHIM,50mm OD x 1.32mm Thk

2шт.

31

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

32

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

33

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

34

87533210

SEAL

1шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87667405

SHIM,140mm OD x 1.2mm Thk

8шт.

39

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

40

84158107

PLATE

Center

2шт.

41

84158109

PLATE

L.H.

1шт.

42

84265054

BRACKET

Model Year 11

2шт.

43

84163120

BRACKET

Indicator

2шт.

44

693887

SPRING

Compression

2шт.

45

84415750

FELT SEAL

1шт.

46

87021332

SPACER,17mm ID x 25mm OD x 27mm L

1шт.

47

412066

NUT,M16 x 2.0, Cl 8

2шт.

48

84157715

TUBE

Spacer

2шт.

49

84257096

LINK,41.4mm Pitch, Threaded Pin

4шт.

50

87109491

OIL SEAL

1шт.

Выбрано товаров: 52
