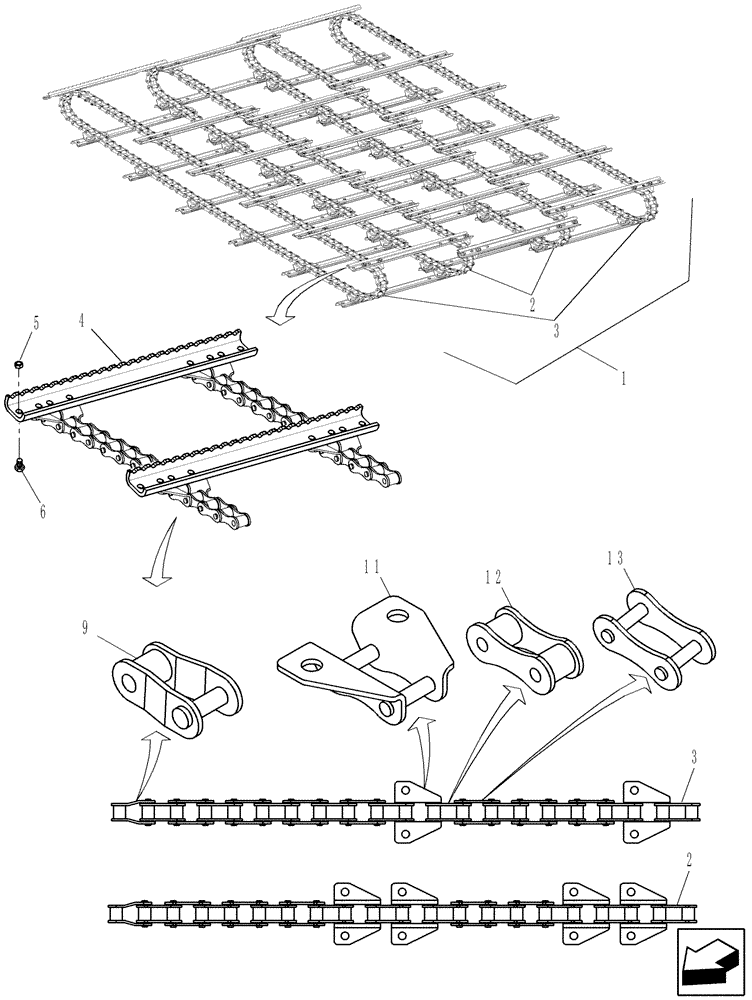

Запчасти Case IH 9230 (60.105.03) - CHAIN ASSY AND FEEDER SLATS (60) - PRODUCT FEEDING

1

84179639

CHAIN,Feeder, 100 Links x 41.4mm = 4140mm

Rock Trap

1шт.

1

84179642

CHAIN,Feeder, 113 Links x 41.4mm = 4678.2mm

Non Rock Trap

1шт.

2

84217941

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Inner, Rock Trap

2шт.

2

84217945

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Inner, Non Rock Trap

2шт.

3

84217950

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Outer, Rock Trap

2шт.

3

84217947

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Outer, Non Rock Trap

2шт.

4

84222922

KIT

U Shaped Slats, Contains Ref 4 (1), Ref 5 (4), Ref 6 (4)---Rock Trap Requires (36), Non Rock Trap Requires (42) Order Kit 84222922

1шт.

5

84207195

NUT,M10 x 1.5

M10 x 1.5, Rock Trap (144), Non Rock Trap (168)

1шт.

6

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Rock Trap (144), Non Rock Trap (168)

1шт.

9

1324835C1

OFFSET LINK

Used with Rock Trap Only

2шт.

9

1324294C1

LINK,40.893mm Pitch

4шт.

11

87283352

CONNECTING LINK

Attacking Link, Rock Trap (72), Non Rock Trap (76)

1шт.

12

87283351

LINK,Chain, 41.4mm Pitch

Roller Link with Solid Bushings, Rock Trap (200), Non Rock Trap (228)

1шт.

13

84257096

LINK,41.4mm Pitch, Threaded Pin

Nuts Included

4шт.
