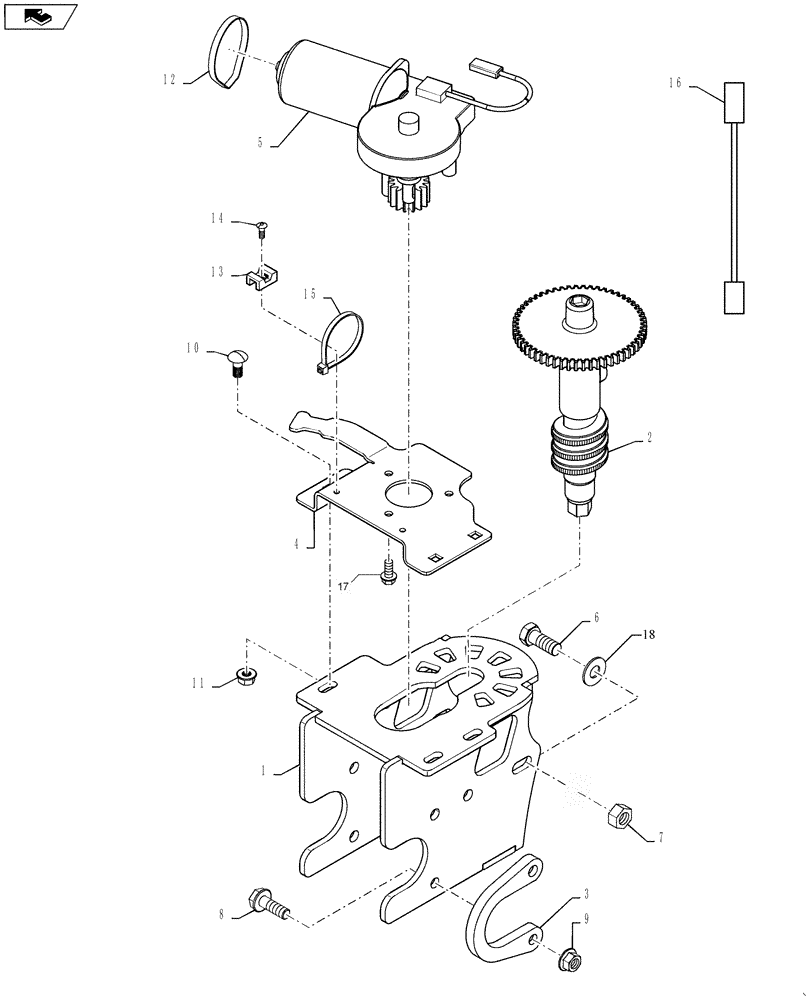

Запчасти Case IH 9230 (55.627.01) - ADJUSTER, CONCAVE T2/T4 (55) - ELECTRICAL SYSTEMS

1

84350629

PIVOT

1шт.

2

84370746

SHAFT W/WORM SCREW

1шт.

3

86997859

BRACKET

1шт.

4

84375541

MOUNTING PLATE

1шт.

5

84350623

ELECTRIC MOTOR

Concave Adjustment

1шт.

84350623R

REMAN-ELECTRIC MOTOR

7230, 8230, 9230, All TIER 4 (3/12-)

1шт.

84350623C

CORE-ELECTRIC MOTOR

Return Number

1шт.

6

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

8

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

12

529070

CABLE TIE,368.3mm L

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

14

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

15

86566989

CABLE TIE,208mm L

1шт.

16

84350625

WIRE HARNESS

1шт.

17

86511892

BOLT,Hex Serr, M6 x 16mm

3шт.

18

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

1шт.
