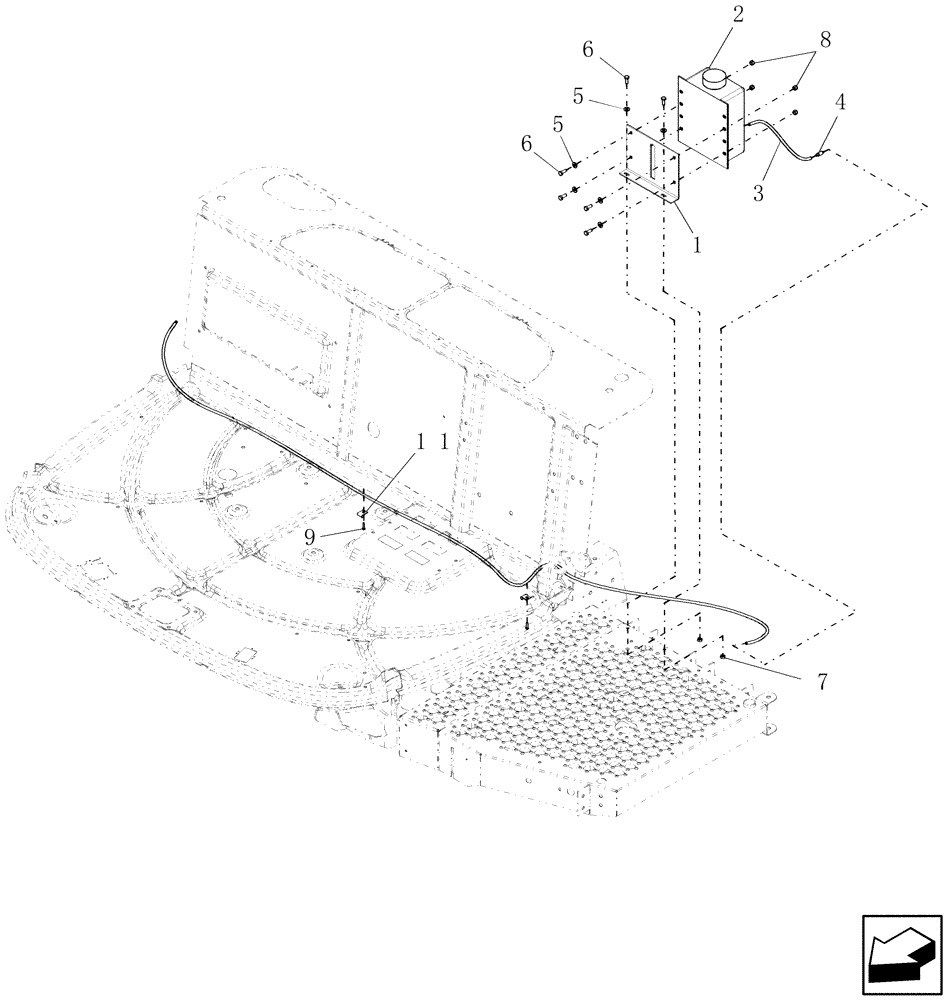

Запчасти Case IH 9230 (55.518.03) - SYSTEM, WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS

1

87044151

BRACKET

1шт.

2

87014923

RESERVOIR, WINDSHIEL

Incl Cap & Pump

1шт.

2

BN319829

CAP

1шт.

2

BN98901

PUMP

1шт.

3

87282056

HOSE,3.56mm ID x 15240mm L

Windshield Washer Res

1шт.

4

84037530

VALVE

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

Prevailing Torque

4шт.

9

87016553

SELF-TAP SCREW,Hex Hd, M4.8 x 19

2шт.

10

84320245

WINDSHIELD WASHER SW

1шт.

11

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.
