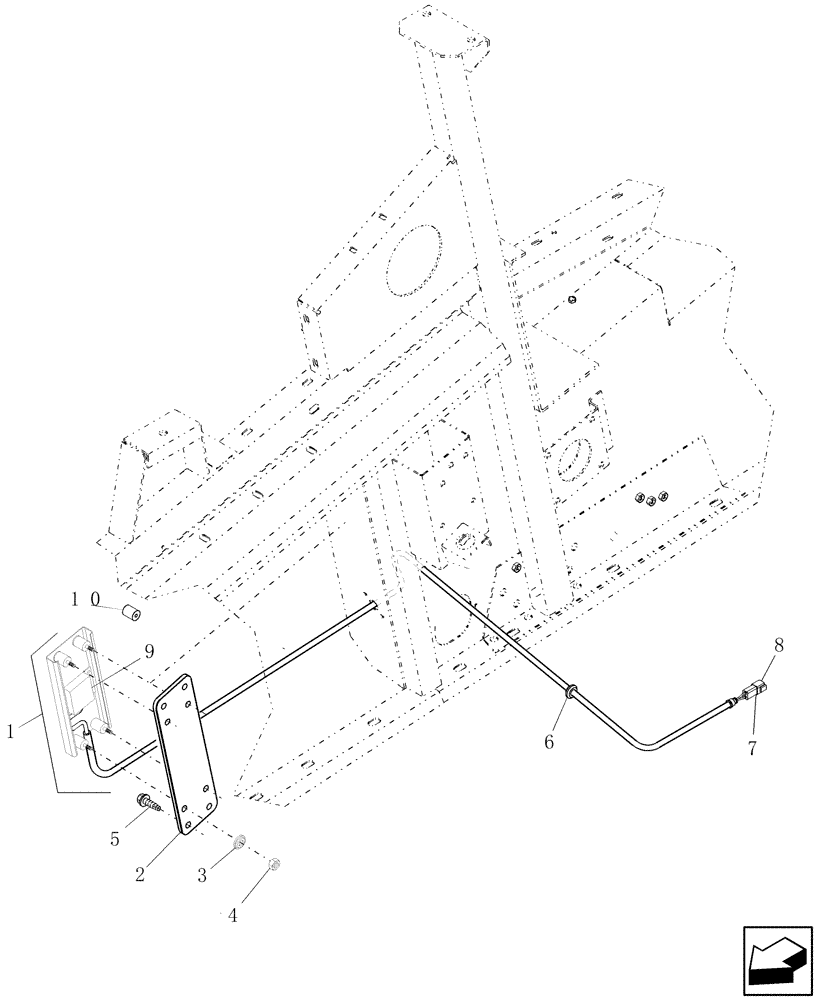

Запчасти Case IH 9230 (55.418.05) - ROTOR LOSS SENSOR (55) - ELECTRICAL SYSTEMS

1

84131601

SENSOR

Rotor Loss; Incl Ref 6, 7, 8, 9 & 10

2шт.

2

86997801

BRACKET

2шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

9706755

NUT,M6, Cl 8

8шт.

5

84733

SELF-TAP SCREW,Hex, 1/4" OD x 3/8"

8шт.

6

86837476

GROMMET,M16 x 29.5 x 22

2шт.

7

84074630

CONTACT HOUSING,Male, 2 Pole

2шт.

8

86575790

PIN

Cable Lug

4шт.

9

84000257

SENSOR

Rotor Loss; Filter Kit

2шт.

10

84131033

DAMPER,25mm OD x 62mm L

8шт.
