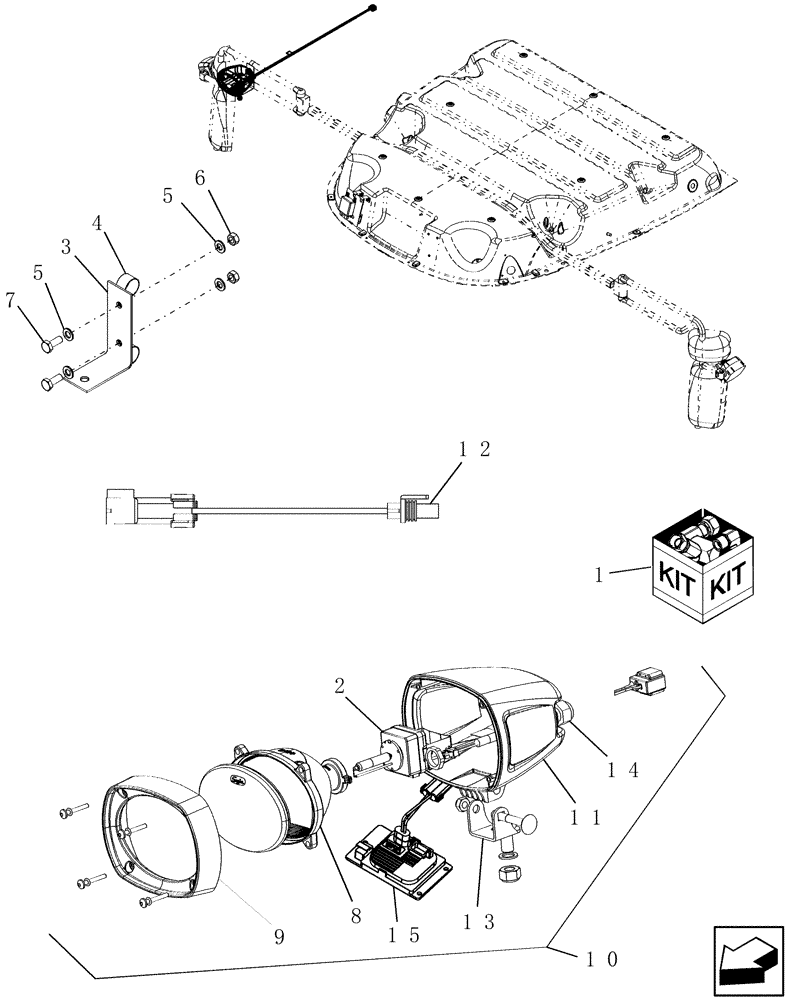

Запчасти Case IH 9230 (55.404.33) - MID DISTANCE HID LIGHT - R.H. MIRROR MOUNTED (55) - ELECTRICAL SYSTEMS

1

87726717

DIA KIT, HARVESTER

Light, HID Mid Distance, Serial Range: -`0

1шт.

Kit will Contain Some Components Not Used in this Application

1шт.

2

87722023

BULB,HID, 85V, 35W

1шт.

3

87756315

BRACKET

1шт.

4

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

87282634

LENS

& Reflector

1шт.

9

NSS

NOT SOLD SEPARAT

Bezel W/Foam

1шт.

10

87746238

LIGHT ASSY.

Incl Ref 2, 8, 9, 11, 13, Thru 15

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

87497442

WIRE HARNESS

HID Light, R.H. Mirror

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket

1шт.

14

NSS

NOT SOLD SEPARAT

Harness, Wire; HID Light, R.H. Mirror (Inside Lamp Housing)

1шт.

15

87539116

TRANSFORMER

Internal

1шт.
