(55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, AUSTRALIA

Запчасти Case IH 9230 (55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, AUSTRALIA (55) - ELECTRICAL SYSTEMS

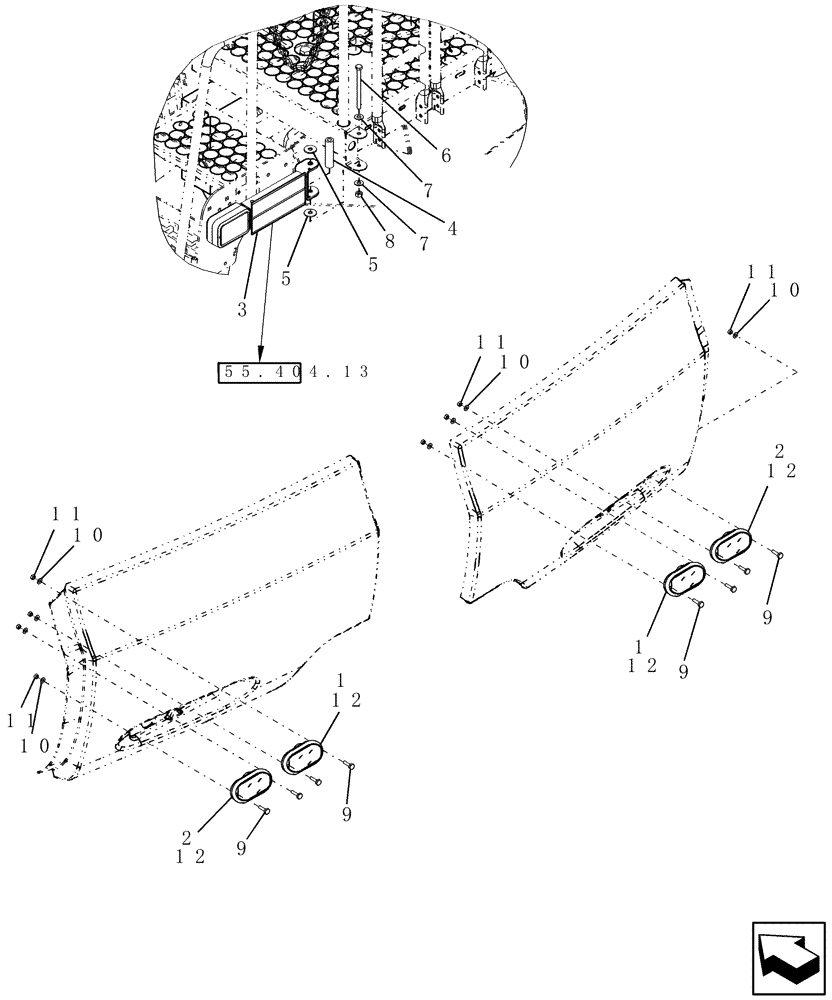

Схема запчастей Case IH 9230 - (55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, AUSTRALIA (55) - ELECTRICAL SYSTEMS
5
2
12
10
5
12
10
9
3
7
11
11
10
6
4
8
7
9
1
1
9
10
2
12
9
12
55.404.13
11
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

2

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn

2шт.

3

87283298

WARNING LIGHT

1шт.

4

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

5

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

6

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

8

9706685

NUT,M12 x 1.75, Cl 8

1шт.

9

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

10

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

11

43440

LOCK NUT,M5 x .8, Cl 8

8шт.

12

87106262

BULB

4шт.

Выбрано товаров: 12
