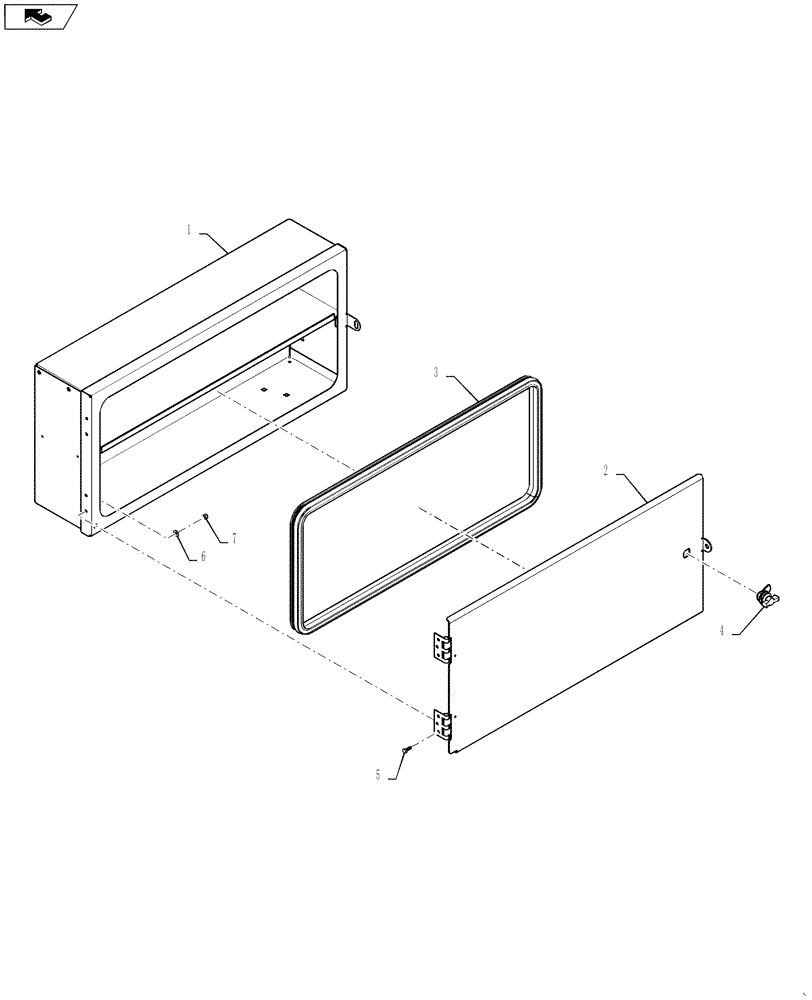

Запчасти Case IH 9230 (55.301.05[01]) - BOX, STORAGE ASSY (55) - ELECTRICAL SYSTEMS

1

84238727

CAB STORAGE BOX

1шт.

2

84278002

DOOR

1шт.

3

401209

SEAL PROTECTION

1шт.

4

182925A1

LOCK

1шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

7

353308

NUT,M6 x 1.0, Cl 8

4шт.
