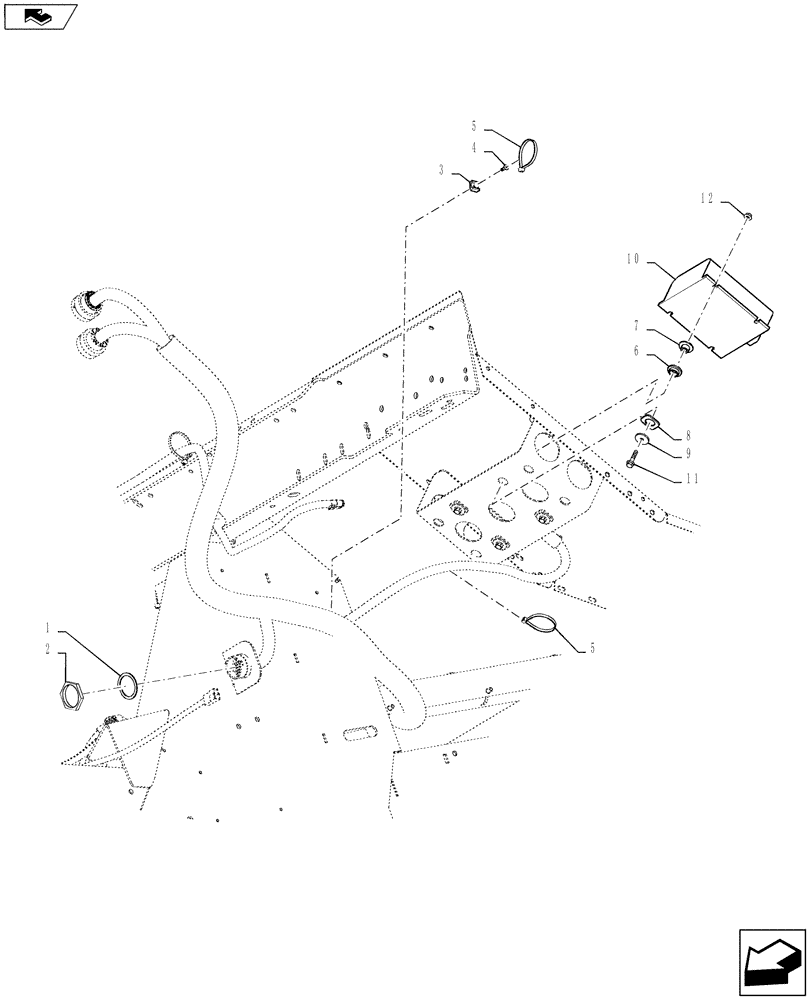

Запчасти Case IH 9230 (55.100.18) - 12/24V CONVERTER- MODULE EQUALIZER (55) - ELECTRICAL SYSTEMS

1

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

2

86619907

NUT,1.6875"-18

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

6

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

4шт.

7

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

8

87672920

RUBBER SEAL,19mm ID x 30mm L x 3mm Thk

Rubber Seal

4шт.

9

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

4шт.

10

84172704

MODULE

12 To 24 V Equalizer/Converter, Module Equalizer

1шт.

10

84172704R

REMAN ELECT CONTROL

7230, 8230, 9230, All COMBINE - TIER 4, 12 To 24 V Equalizer/Converter, Module Equalizer (3/12-)

1шт.

10

84172704C

CORE-ELECTRONIC CONT

Return Number

1шт.

11

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

4шт.

12

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.
