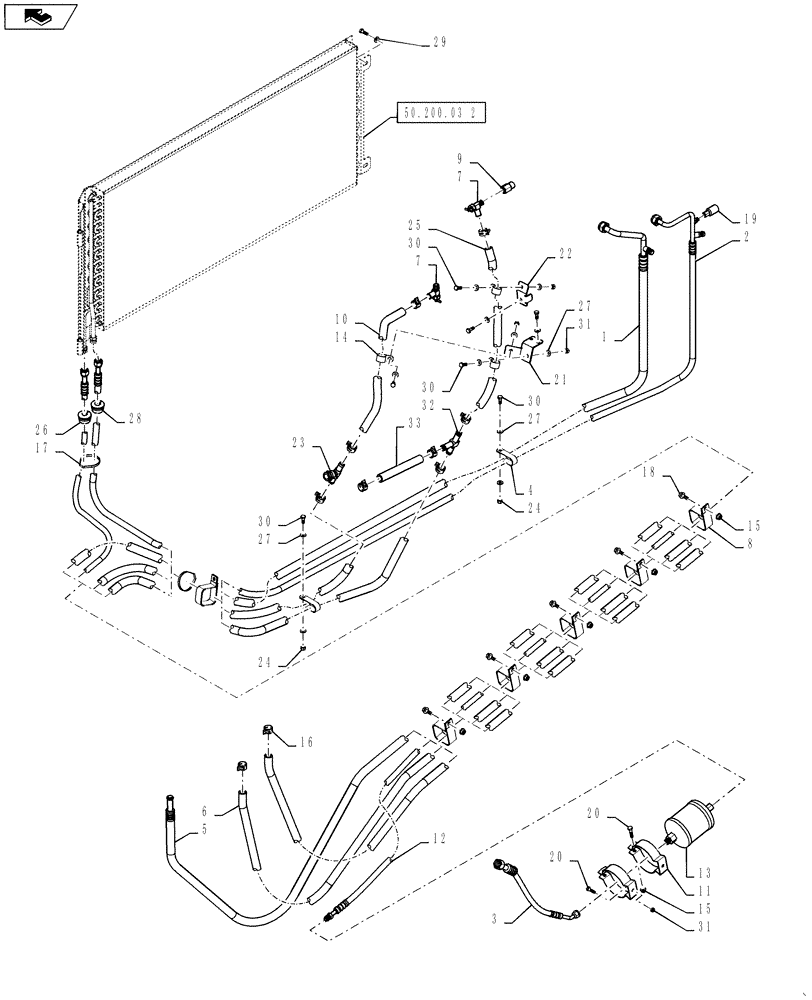

Запчасти Case IH 9230 (50.200.04) - HVAC HOSES, 8230/9230 T4 (50) - CAB CLIMATE CONTROL

1

87736746

A/C HOSE

Compressor Suction (Uses Oring 9827059)

1шт.

2

87684281

A/C HOSE

Compressor Discharge (Uses Oring 9827058)

1шт.

3

87736742

HOSE ASSY.

Drier To Cab

1шт.

4

87000220

HOSE CLAMP

1шт.

5

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Cut from Bulk, 4.1M

1шт.

6

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Cut from Bulk, 4.53 M

1шт.

7

301803R1

SHUT-OFF VALVE

2шт.

8

87000226

HOSE CLAMP

7шт.

9

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

10

84326457

HEATER HOSE

1шт.

11

87105841

BRACKET

2шт.

12

84399431

A/C HOSE

1шт.

13

87105840

RECEIVER-DRYER

1шт.

14

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

15

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

7шт.

16

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

10шт.

17

529070

CABLE TIE,368.3mm L

3шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

19

87000227

SWITCH, A/C HIGH PRE

1шт.

20

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

21

87703182

BRACKET

1шт.

22

87703161

BRACKET

1шт.

23

84283392

UNION TEE

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

25

1958774C1

HEATER HOSE

1шт.

26

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

28

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

29

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

31

9706690

NUT,M8 x 1.25, Cl 8

5шт.

32

84367016

TEE

1шт.

33

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

1шт.
