Запчасти Case IH 9230 (48.130.01 ) - TRACK DRIVE, FINAL - NA ONLY (48) - TRACKS & TRACK SUSPENSION

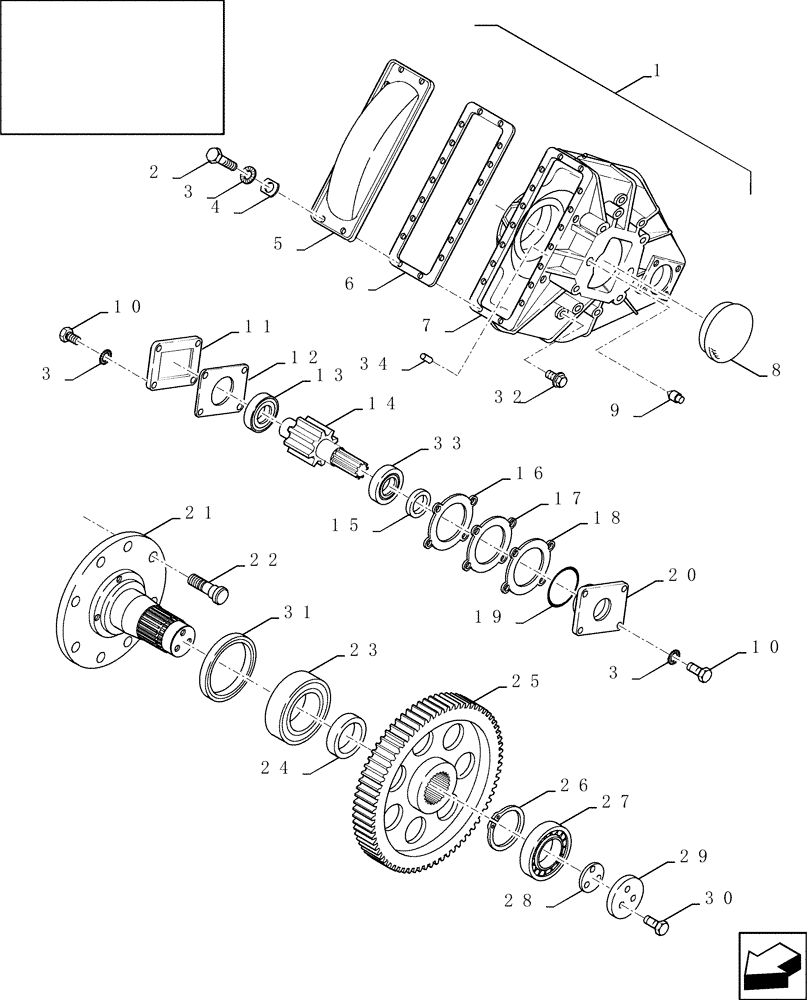

Схема запчастей Case IH 9230 - (48.130.01 ) - TRACK DRIVE, FINAL - NA ONLY (48) - TRACKS & TRACK SUSPENSION
21
3
11
19
27
4
24
30
25
17
26
22
29
2
6
12
31
32
20
3
1
23
18
10
3
9
7
10
28
8
16
13
14
5
15
34
33

Артикул

Название

Примечание

Количество

1

84261236

HOUSING

Final Drive

1шт.

1

84261236R

REMAN-FINAL DRIVE

1шт.

1

84261236C

FINAL DRIVE HOUSING

Return Number

1шт.

2

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

18шт.

3

86978768

DOWEL,M12 x 30mm L

2шт.

4

86500888

BEARING ASSY,45mm ID x 85mm OD x 32mm W

1шт.

5

84129520

COVER

1шт.

6

NS

NOT SERVICED

Replace W/Liquid Gasket

1шт.

7

87734567

HOUSING

1шт.

8

613201

COVER,153.5mm OD x 42.1mm W

1шт.

9

626826

DOWEL,29.92mm OD x 35.1mm L

1шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

613212

BEARING COVER

1шт.

12

410920

GASKET,0.9mm Thk

1шт.

13

86975647

TAPERED BEARING,41.27mm ID x 85.72mm OD x 30.16mm W

1шт.

14

87734565

GEAR

1шт.

15

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

1шт.

16

382948

SHIM,89.7mm ID x 108mm OD x 0.05mm Thk

1шт.

17

382949

SHIM,89.7mm ID x 108mm OD x 0.2mm Thk

1шт.

18

382950

SHIM,89.7mm ID x 108mm OD x 0.5mm Thk

1шт.

19

913107

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

20

87736696

COVER

Flange

1шт.

21

87649847

AXLE

1шт.

22

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

Use With Spacer 84394484

10шт.

84394484

SPACER,22.8mm ID x 50.3mm OD x 30mm

Used With 87367550 Stud (Not Shown)

10шт.

23

86975648

TAPERED BEARING,104.78mm ID x 180.98mm OD x 47.63mm W

1шт.

24

84814999

SPACER,105.01mm ID x 114.81mm OD x 39.22mm L

1шт.

25

87734566

GEAR

1шт.

26

613200

SPACER,M84 ID x 98.5mm OD x 4.6mm H

1шт.

27

86975646

TAPERED BEARING,82.55mm ID x 139.99mm OD x 36.51mm W

1шт.

28

395393

SHIM,45mm ID x 75mm OD x 0.5mm Thk

1шт.

28

395392

SHIM,45mm ID x 75mm OD x 0.2mm Thk

1шт.

28

395391

SHIM,45mm ID x 75mm OD x 0.05mm Thk

1шт.

29

382503

WASHER,Special, 17mm ID x 95mm OD x 14mm Thk

1шт.

30

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

3шт.

31

9509555

SEAL KIT,184.91mm ID x 215.56mm OD x 38.6mm Thk

Seal Kit, Mud Version (Used With 9818670)

1шт.

31

9818670

RING,197.55mm ID x 230mm OD x 24.6mm Thk

Ring, Seal, Mud Version (Used With 9509555)

1шт.

32

412413

PLUG,M18 X 1.5

4шт.

33

86500888

BEARING ASSY,45mm ID x 85mm OD x 32mm W

1шт.

Выбрано товаров: 39
