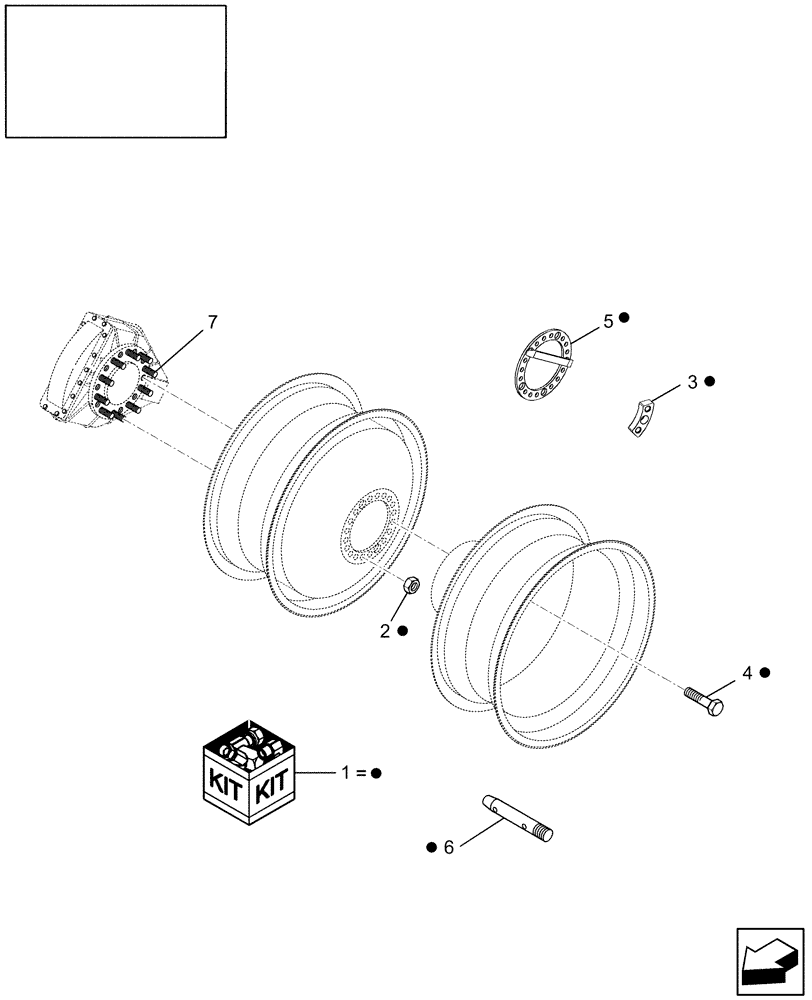

Запчасти Case IH 9230 (44.100.14) - DUAL WHEELS MOUNTING (44) - WHEELS

1

87283504

KIT

Fixation, Dual Wheels, Incl Ref 2 thru 6

1шт.

2

336945

WHEEL NUT,M22 x 1.5, Cl 10

20шт.

3

87283501

SPACER

Plate, Wheel Mounting

10шт.

4

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

20шт.

5

87280385

SPACER

, Serial Range: -`0

2шт.

Used Only When Inner Dual Wheel Is Installed W/O Outer Dual Wheel

1шт.

6

87283521

STUD,M22 x 180

Starter, Drive Wheel

2шт.

7

87282493

STUD,M22 x 1.5 x 84mm

20шт.
