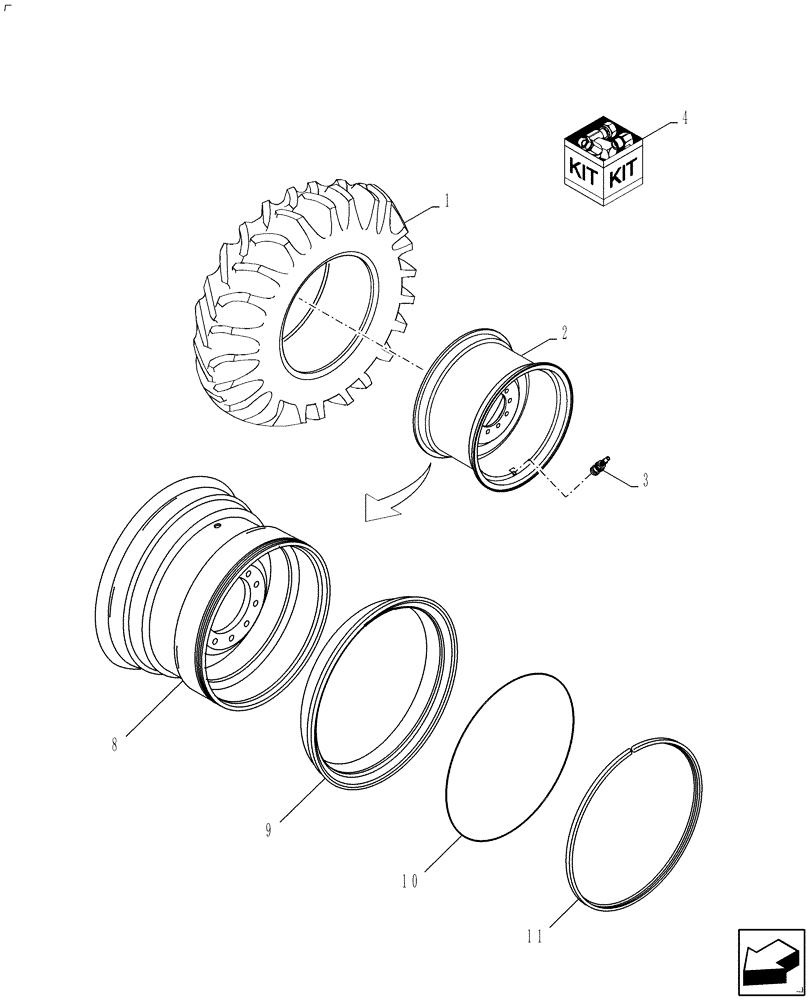

Запчасти Case IH 9230 (44.100.08) - WHEEL, FRONT, 76X50 FLOATATION, 32X44DWM, NA ONLY (44) - WHEELS

1

NS

NOT SERVICED

Procure Locally

1шт.

2

84229717

WHEEL ASSY

WHEEL ASSY, 32XDWM44 SILVER

1шт.

3

86997685

TIRE TUBE

Valve Stem

1шт.

4

87283866

KIT

Fixation (includes 5-7)

1шт.

5

84349242

STUD

Starter (Not Shown)

2шт.

6

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

(Not Shown)

20шт.

7

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

(Not Shown)

20шт.

8

NS

NOT SERVICED

Order Complete 84229717

1шт.

9

87758241

LOCKING RING

1шт.

10

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

11

184472C1

RING

1шт.
