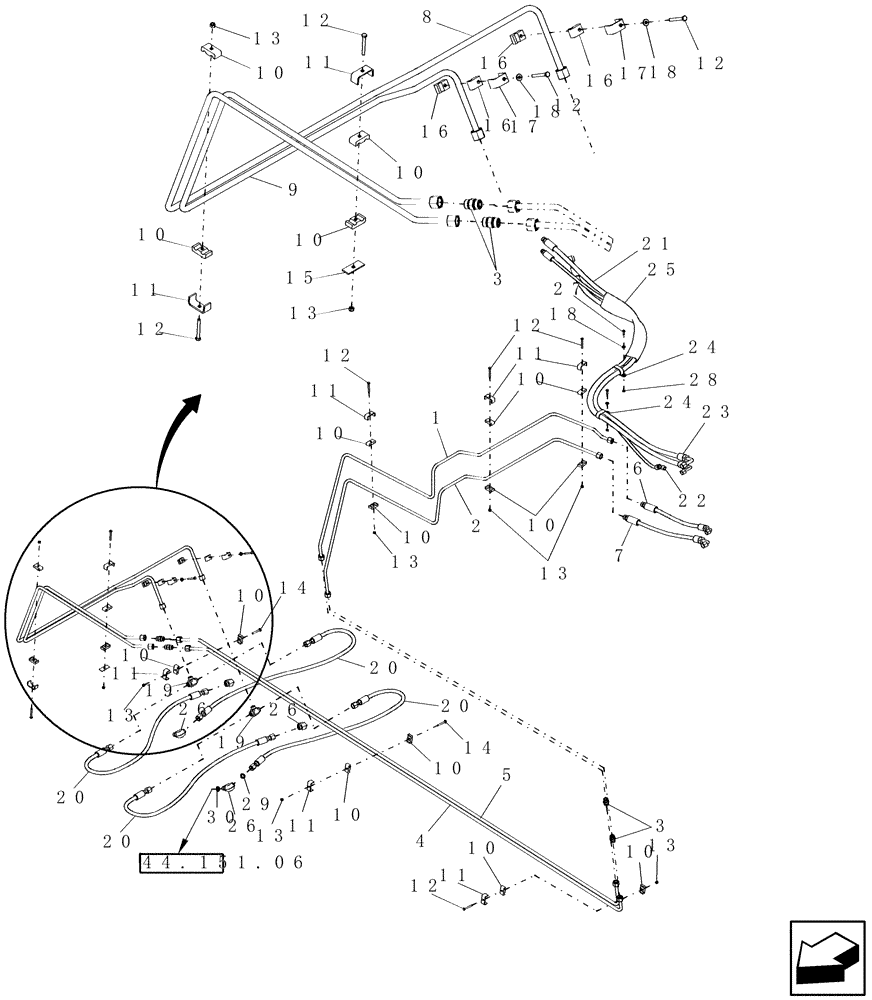

Запчасти Case IH 9230 (41.204.04) - HYDRAULIC STEERING PLUMBING (41) - STEERING

1

87536500

HYD TUBE,0.5" OD

Steering, Front, R.H.

1шт.

2

87536501

HYD TUBE,0.5" OD

Steering, L.H.

1шт.

3

84431547

UNION,13/16"-16 ORFS

4шт.

4

87280104

HYD TUBE,0.50" OD

Lower, Mid

1шт.

5

86975348

HYD TUBE,0.50" OD

Upper, Mid

1шт.

6

87280679

FLEXIBLE HOSE

Steering, R.H., SCU; L = 430 mm

1шт.

7

87576607

HYDRAULIC HOSE

Steering, L.H., SCU; L = 550 mm

1шт.

8

87011296

HYD TUBE,12.7mm OD

Steering

1шт.

9

86575639

HYD TUBE,12.7mm OD

Steering

1шт.

10

430357

CLAMP

16шт.

11

431941

SUPPORT

8шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

8шт.

13

353308

NUT,M6 x 1.0, Cl 8

8шт.

14

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

15

434097

SUPPORT

1шт.

16

433008

CLAMP

4шт.

17

442340

SUPPORT

2шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

19

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

20

84068103

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

To Steering Cylinders; L = 1200 mm

4шт.

21

87280799

FLEXIBLE HOSE

Pressure, SCU

1шт.

22

87280802

FLEXIBLE HOSE

Signal, SCU

1шт.

23

87280801

FLEXIBLE HOSE

Return, SCU

1шт.

24

87000220

HOSE CLAMP

2шт.

25

87106240

SLEEVE

1шт.

26

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl Refs 29 & 30

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

30

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
