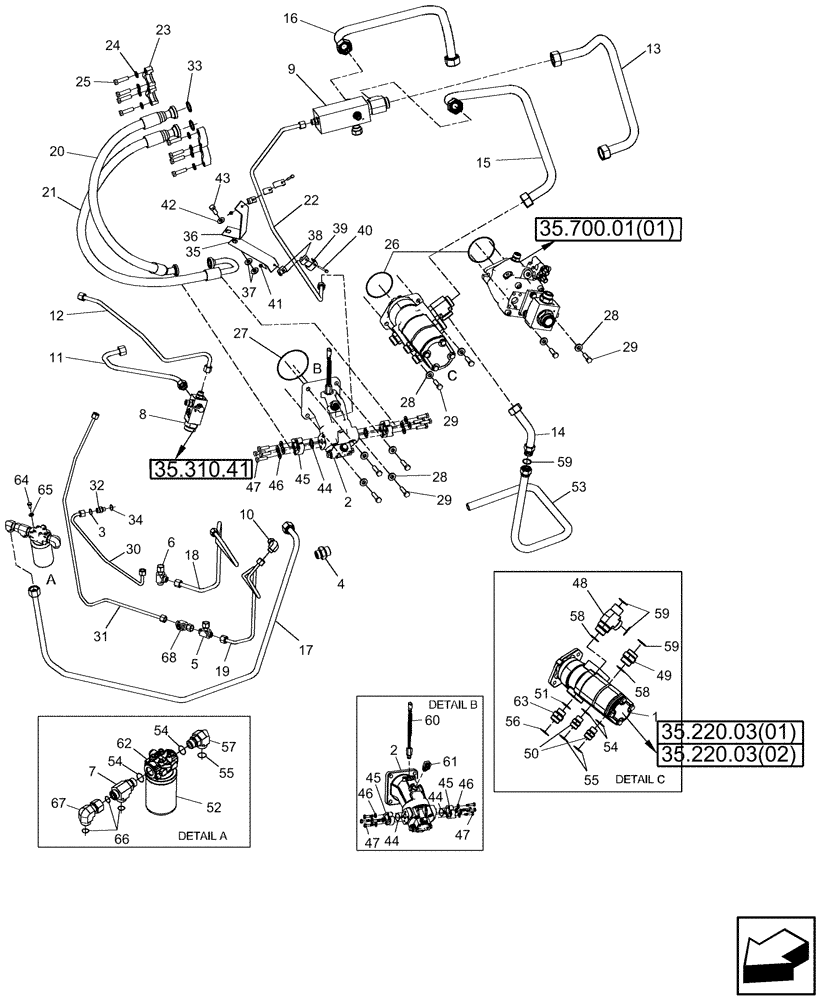

Запчасти Case IH 9230 (41.203.01) - HYDRAULIC LINES, PTO 1 (41) - STEERING

1

84315864

PUMP

Triple Gear, Serial Range: -YCG217301

1шт.

1

84315864R

REMAN-HYD PUMP

7230, 8230, 9230, All COMBINE - TIER 4 (3/12-)

1шт.

1

84315864C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84546739

HYDRAULIC PUMP,61.3 CC

Triple Gear, Start Serial: YCG217301

1шт.

1

84546739R

REMAN-HYD PUMP

Reman For New P/N 84546739, Triple Gear, Start Serial: YCG217301

1шт.

1

84546739C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

87310111

MOTOR, HYDRAULIC,45.6CC

1шт.

2

87310111R

REMAN-HYD MOTOR

1шт.

2

87310111C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

4

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

1шт.

5

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

Incl Ref 3 (2)

1шт.

6

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

7

86579706

TEE,1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl Ref 54(1) & 66(2)

1шт.

8

0C

ORDER COMPONENTS

Manifold, Control Pressure

1шт.

9

0C

ORDER COMPONENTS

Manifold, Return

1шт.

10

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

11

84131660

TUBE ASSY.

Charge To Propulsion Pump

1шт.

12

87709559

HYD TUBE,0.5" OD

Charge To Rotor Pump

1шт.

13

87703253

TUBE,1.25" OD

Lube & Charge Pump Connector

1шт.

14

87563479

HYD TUBE,1.25" OD

Hyd Pump, PTO 1

1шт.

Replaces One-piece Production Tube

1шт.

15

87703252

HYD TUBE,1.25" OD

Return From Drain Manifold

1шт.

16

87641633

HYD TUBE,1.25" OD

Ground Drive Pump Drain

1шт.

17

87641636

HYD TUBE,0.75" OD

Lube To Filter

1шт.

18

86995885

HYD TUBE,0.50" OD

Feeder Clutch Lube Supply

1шт.

19

86995872

HYD TUBE,0.375" OD

Rotor Clutch Regulated Supply

1шт.

20

87314312

FLEXIBLE HOSE

Rotor Drive B

1шт.

21

87314311

FLEXIBLE HOSE,19mm ID x 1200mm L

Rotor Drive A

1шт.

22

87587907

HYD TUBE,0.5" OD

Return Manifold to Rotor Motor

1шт.

23

86980732

CLAMP

4шт.

24

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

25

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

26

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

27

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

28

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

29

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

4шт.

30

86995994

HYD TUBE,0.375" OD

Rotor Clutch Pressure

1шт.

31

86995887

HYD TUBE,0.375" OD

Clutch Pressure Supply To Unl Moedel Year 09 And Before

1шт.

31

87657699

HYD TUBE,0.375" OD

Model Year 2010 And After

1шт.

32

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

33

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

34

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

35

87324916

BRACKET

Lower, Rotor Drain

1шт.

36

87324918

BRACKET

Upper, Rotor Drain

1шт.

37

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

38

433008

CLAMP

4шт.

39

442340

SUPPORT

2шт.

40

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

41

353308

NUT,M6 x 1.0, Cl 8

2шт.

42

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

43

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

44

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

45

86980731

CLAMP

4шт.

46

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

47

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

48

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

1шт.

49

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

50

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

51

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

52

84523925

HYDRAULIC OIL FILTER

Spin On

1шт.

53

87563478

HYD TUBE,1.25" OD

Hyd Pump, PTO 1

1шт.

Replaces One-piece Production Tube

1шт.

54

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

55

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

56

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

57

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl Ref 54 & 55

1шт.

58

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

59

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

4шт.

60

87662557

SENSOR

Rotor Motor Speed

1шт.

61

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

62

86998689

HYDRAULIC OIL FILTER

Incl Ref 52

1шт.

63

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl Ref 51 & 56

3шт.

64

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

65

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

66

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

67

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl Ref 66(1)

1шт.

68

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Tee

1шт.
