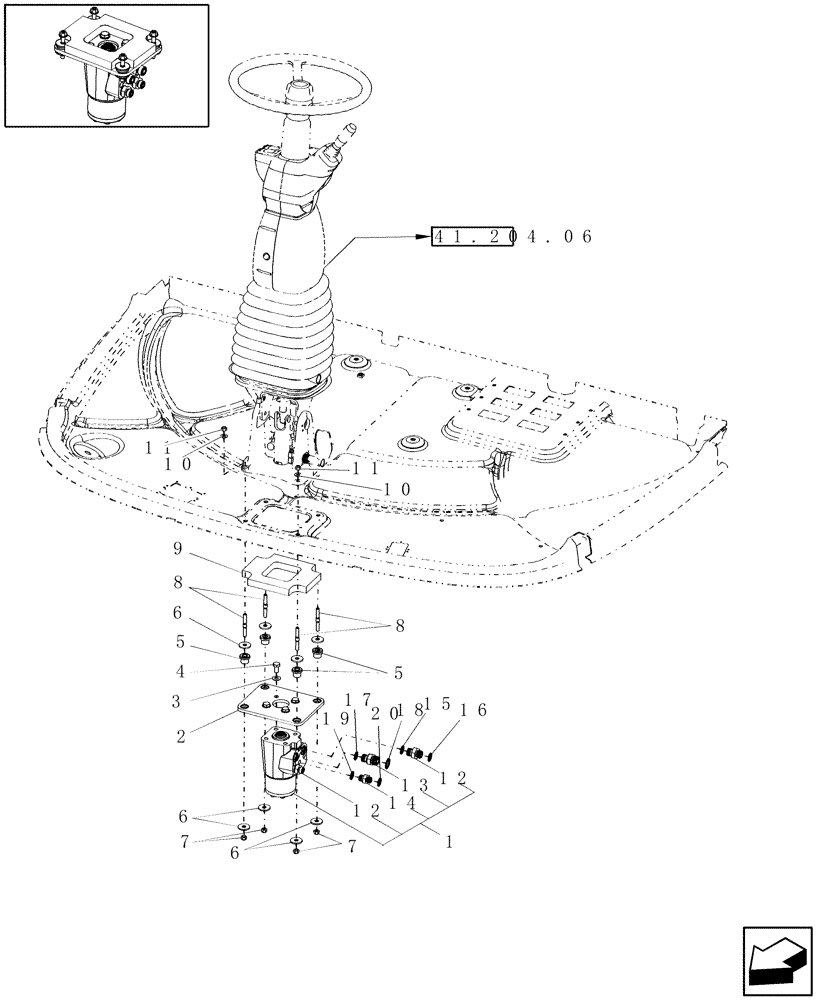

Запчасти Case IH 9230 (41.200.03) - STEERING CONTROL VALVE, MOUNTING (41) - STEERING

1

87280548

HYDRAULIC STEERING

NA & Latin America

1шт.

1

87280549

HYDRAULIC STEERING

EU

1шт.

2

84075217

PLATE

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

5

601062

ISOLATOR

Mounting

4шт.

6

86012639

WASHER,10.3mm ID x 31.8mm OD x 3.2mm Thk

8шт.

7

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

8

84432508

STUD,M8 x 71

4шт.

9

86974950

GASKET

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

4шт.

12

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

10 mm ORFS x M18 ORB

2шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

12 mm ORFS x M18 ORB

2шт.

14

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

6 mm ORFS x M12 ORB

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
