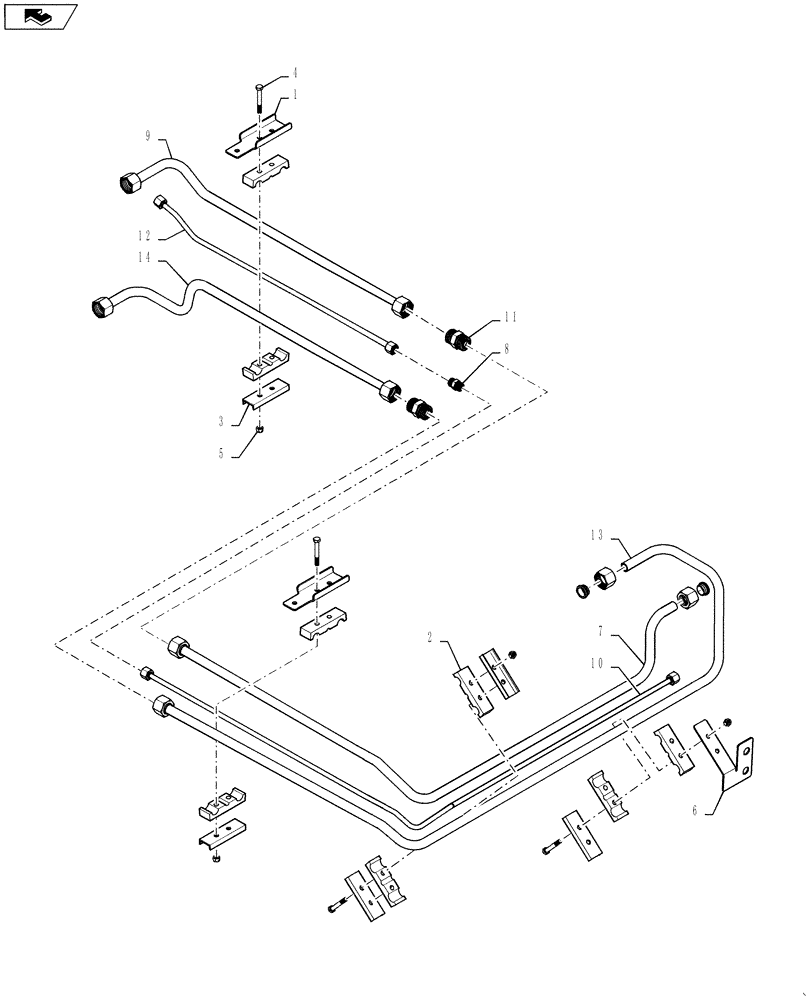

Запчасти Case IH 9230 (35.910.03) - ENGINE HYDRAULICS REAR 82/9230 (35) - HYDRAULIC SYSTEMS

1

84355002

BRACKET

2шт.

2

86998883

CLAMP

4шт.

3

87000242

CHANNEL

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

8шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87000942

BRACKET

1шт.

7

84354986

HYD TUBE

Cleaning Fan Pressure

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

2шт.

9

84354991

HYD TUBE

Cleaning Fan Valve Pressure

1шт.

10

84354993

HYD TUBE

Cleaning Fan Drain

1шт.

11

84431546

UNION,11/16"-16 ORFS

1шт.

12

84354996

HYD TUBE

Cleaning Fan Drain

1шт.

13

84354979

HYD TUBE

Spreader Return

1шт.

14

84354998

HYD TUBE

Rotary Air Screen Motor Pressure

1шт.
