Запчасти Case IH 9230 (35.910.02[01]) - HYDRAULIC LINES - CLEANING FAN DRIVE; NARROW TIRE OPTION (35) - HYDRAULIC SYSTEMS

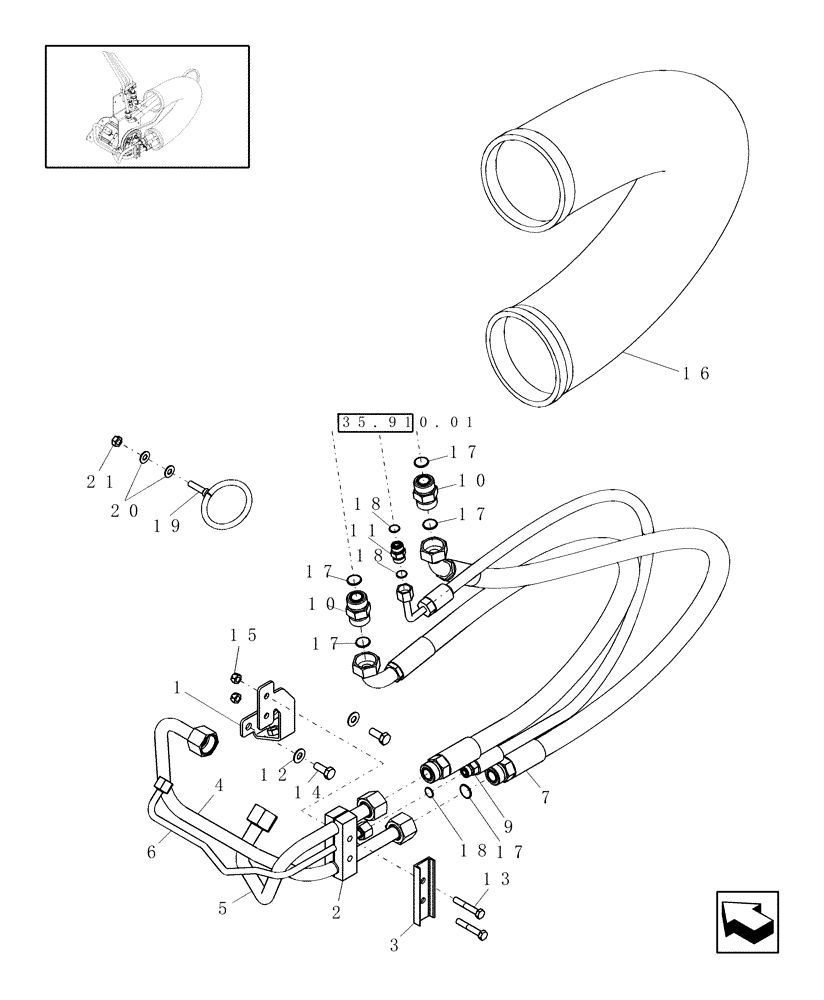

Схема запчастей Case IH 9230 - (35.910.02[01]) - HYDRAULIC LINES - CLEANING FAN DRIVE; NARROW TIRE OPTION (35) - HYDRAULIC SYSTEMS
18
18
17
16
6
17
3
14
2
4
13
21
17
35.910.01
18
10
17
5
20
9
17
19
11
15
7
12
1
10

Артикул

Название

Примечание

Количество

1

84160216

BRACKET

1шт.

2

86998883

CLAMP

1шт.

3

87000242

CHANNEL

1шт.

4

84194810

HYD TUBE,15mm ID x 20mm OD x 330mm OAL

Cleaning Fan Belt Supply

1шт.

5

84194812

HYD TUBE,20.00 mm OD

Cleaning Fan Belt Return

1шт.

6

84251798

HYD TUBE,10 mm OD

Cleaning Fan Belt Drain

1шт.

7

87499293

HOSE ASSY.

Cleaning Fan Pressure; Incl Ref 17

1шт.

8

86998746

FLEXIBLE HOSE

Cleaning Fan Return

1шт.

9

87499294

FLEXIBLE HOSE

Cleaning Fan Case Drain; Incl Ref 18

1шт.

10

84100407

UNION,1-3/16"-12 ORFS

Incl Ref 17(2)

2шт.

11

84431546

UNION,11/16"-16 ORFS

Incl Ref 18(2)

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

16

87106239

SLEEVE

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

19

84251797

HOLDER

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

21

9706690

NUT,M8 x 1.25, Cl 8

1шт.

Выбрано товаров: 21
