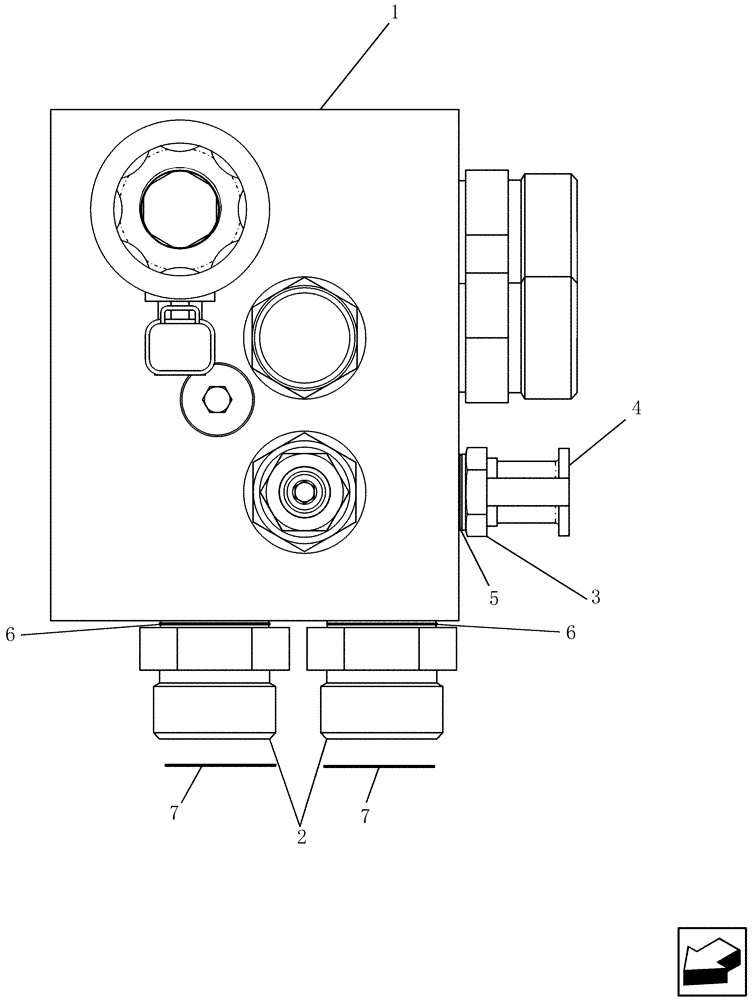

Запчасти Case IH 9230 (35.904.03) - VALVE, CLEANING FAN (35) - HYDRAULIC SYSTEMS

1

87107189

HYDRAULIC VALVE

For break down see page 35.904.03(2)

1шт.

2

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

4шт.

3

84320565

COUPLING,M14 x 1.5

Fitting, Diagnostic

1шт.

4

86502604

DUST CAP

1шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
