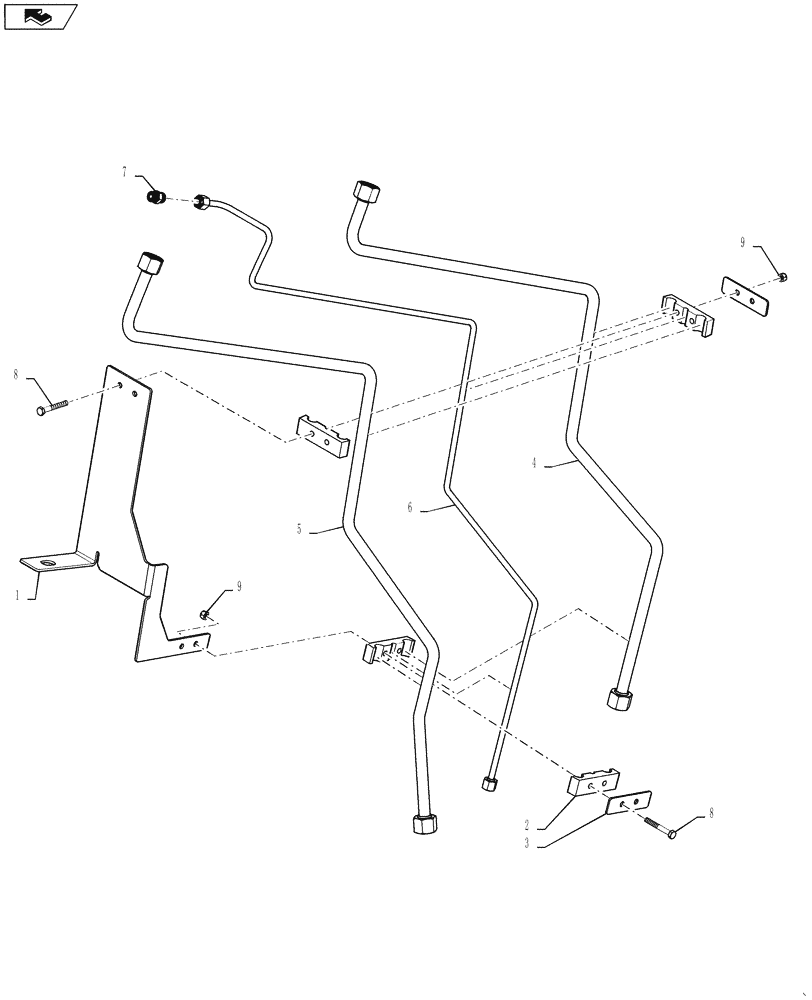

Запчасти Case IH 9230 (35.904.01[2]) - HYDRAULICS,CLEANING FAN CONT (35) - HYDRAULIC SYSTEMS

1

84308612

BRACKET

1шт.

2

86998883

CLAMP

2шт.

3

84340688

PLATE

2шт.

4

84414048

HYD TUBE

cleaning fan supply

1шт.

5

84421943

HYD TUBE

cleaning fan return

1шт.

6

84414050

HYD TUBE

cleaning fan drain

1шт.

7

84431546

UNION,11/16"-16 ORFS

1шт.

8

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

84377244

HYDRAULIC HOSE,19.05mm ID x 975mm L, SAE 100R17

Fan Motor Supply

1шт.

11

84377243

HYDRAULIC HOSE,9.53mm ID x 960mm L, SAE 100R16

Fan Motor Drain

1шт.

12

84377242

HYDRAULIC HOSE,19.05mm ID x 1100mm L, SAE 100R16

Fan Motor Return

1шт.
