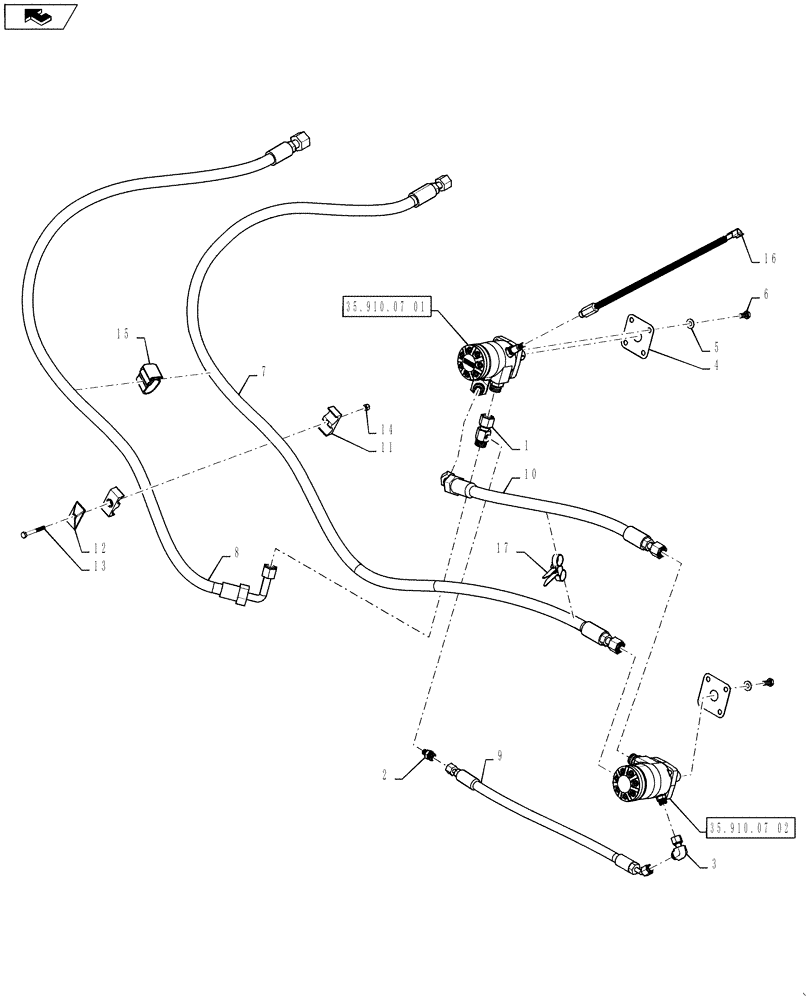

1
87722883
FITTING,5/8"-10 Fem ORFS x 5/8"-10 M ORFS
5/8 Port (#4 ORB)
1шт.
2
9840330
HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB
3/8 ORFS-ORB 1/4
1шт.
3
84989392
ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw
1шт.
4
87531172
PLATE
2шт.
5
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
8шт.
6
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
8шт.
7
84490892
HYDRAULIC HOSE,15.88mm ID x 2380mm L, SAE 100R17
Spreader Supply
1шт.
8
84490893
HYDRAULIC HOSE
Spreader Return
1шт.
9
84254265
HYDRAULIC HOSE
Spreader Drain
1шт.
10
84254267
HOSE ASSY.
Spreader Int
1шт.
11
87000924
CLAMP
1шт.
12
87000230
PLATE
1шт.
13
300510
BOLT,Hex, M8 x 65mm, Cl 8.8
1шт.
14
86629542
NUT,M8 x 1.25, Cl 8.8
1шт.
15
84177788
SECURING STRAP
1шт.
16
87662556
SENSOR
Spreader Speed
1шт.
17
327144A1
STRAP,328mm L
Dual Tie
1шт.
