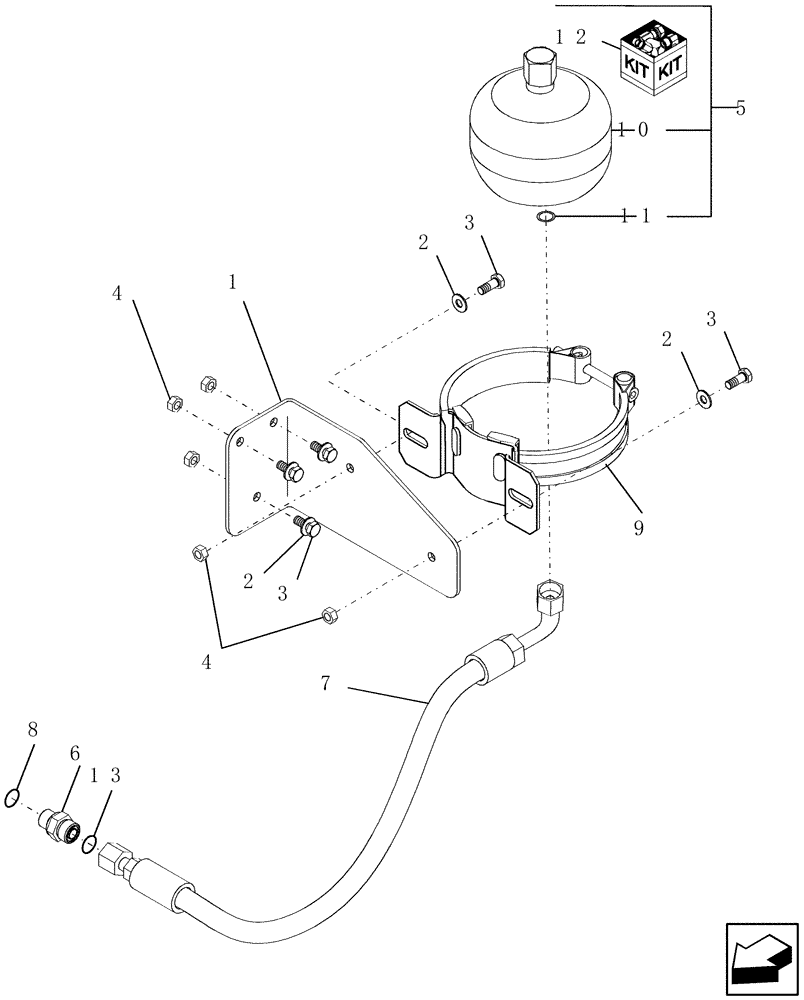

Запчасти Case IH 9230 (35.701.01) - ACCUMULATOR - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

84083383

KIT

1шт.

1

87105672

BRACKET

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

4

9706690

NUT,M8 x 1.25, Cl 8

5шт.

5

84225503

ACCUMULATOR

Hydraulic System, Includes Ref 10, 11 & 12

1шт.

6

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

7

87105677

HOSE

To Ride Control Accumulator; L = 610 mm

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

84133868

CLAMP

1шт.

10

87105673

ACCUMULATOR

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

87106501

KIT

Charging Valve

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
