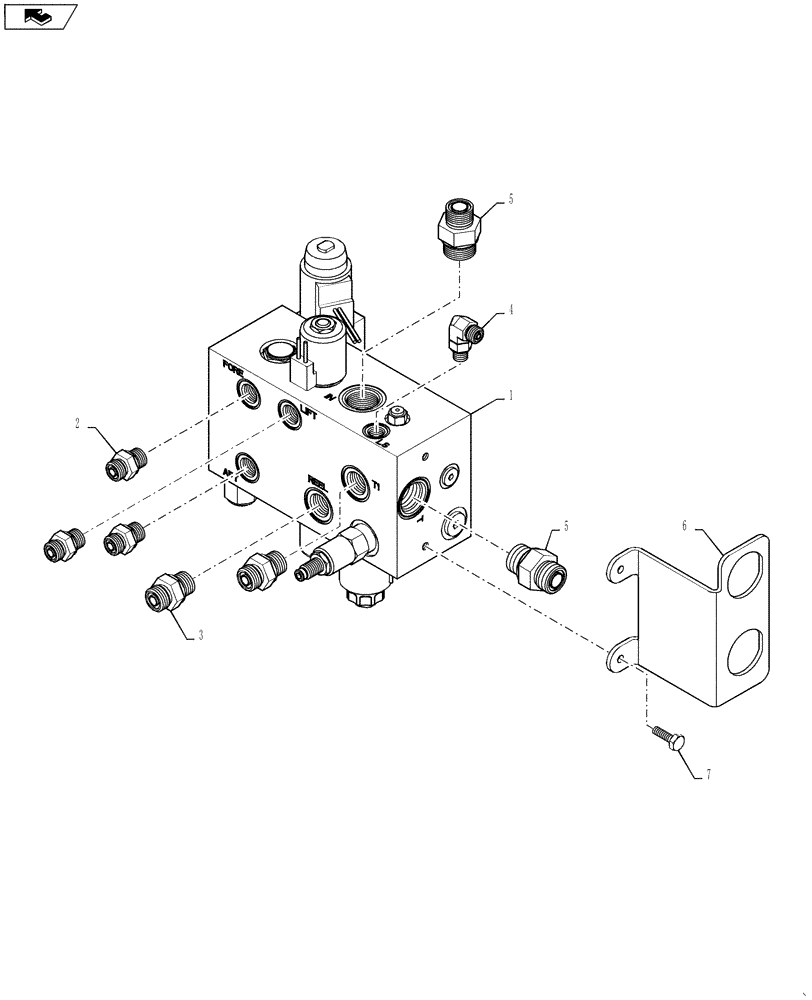

Запчасти Case IH 9230 (35.480.06) - VALVE, FEEDER STACK, FIXED (35) - HYDRAULIC SYSTEMS

1

84300159

VALVE

1шт.

2

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

3шт.

3

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

4

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

5

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

6

84533184

BRACKET

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
