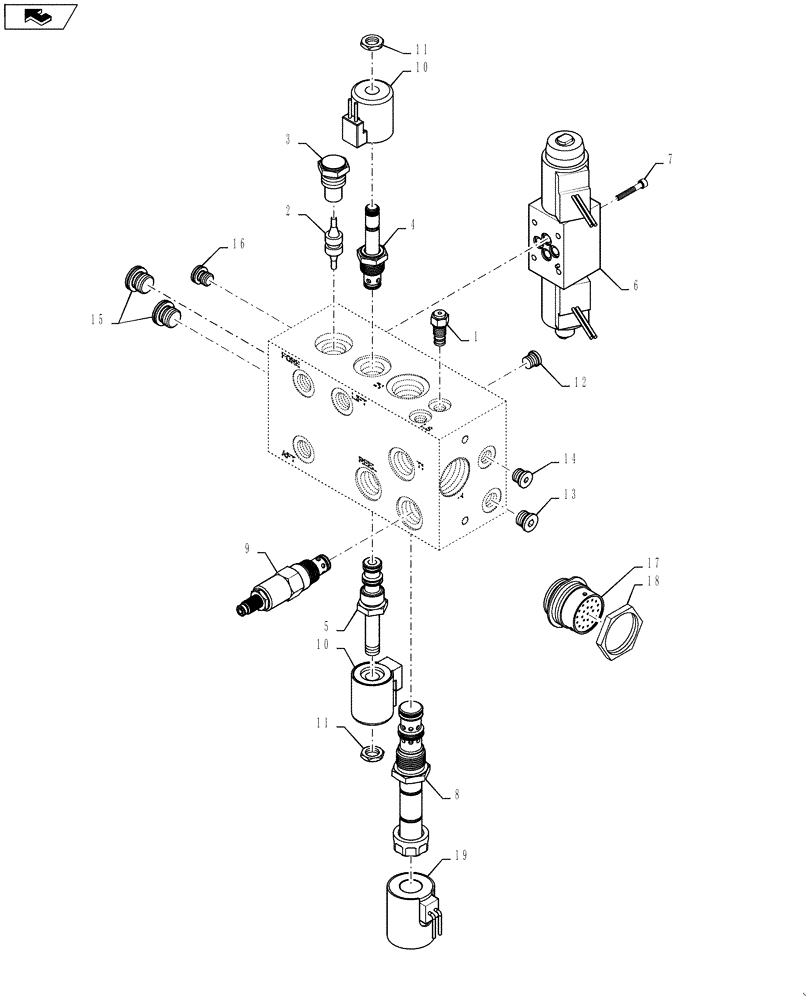

Запчасти Case IH 9230 (35.480.06[02]) - VALVE, FEEDER STACK, FIXED, FEEDER VALVE BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

190704A1

CHECK VALVE

Parking Brake, 30 PSI Crack Pressure

1шт.

2

149940C1

PISTON

1шт.

3

87433998

CHECK VALVE,7/8" - 14

2-5 PSI Crack Pressure

2шт.

4

87436627

VALVE

2 Way 2 Position Solenoid Cartridge, Normally Closed Poppet Type, Pilot Operated, Reel Lower

1шт.

5

190711A1

VALVE

3 Way 2 Position, Reel Lift

1шт.

6

87434014

CONTROL VALVE

3 Position, 4 Way, Reel Fore And Aft

1шт.

7

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

8

87757015

VALVE

Flow Control, Proportional, Reel Drive

1шт.

9

84303615

VALVE

Relief, 2100 PSI @ .25 GPM/1LPM, Max 2400PSI @ 30GPM/100LPM

1шт.

10

86995302

SOLENOID

2шт.

11

195683A1

JAM NUT,1/2"-20

2шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

13

9625178

PLUG,9/16" - 18 ORB

1шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

3шт.

15

86598043

PLUG,M12 x 1.5 ORB

2шт.

16

86598043

PLUG,M12 x 1.5 ORB

1шт.

17

319151A1

CONNECTOR, ELEC

Deutsch, 23 Cavity

1шт.

18

86619907

NUT,1.6875"-18

1шт.

19

84304075

COIL

Solenoid

1шт.
