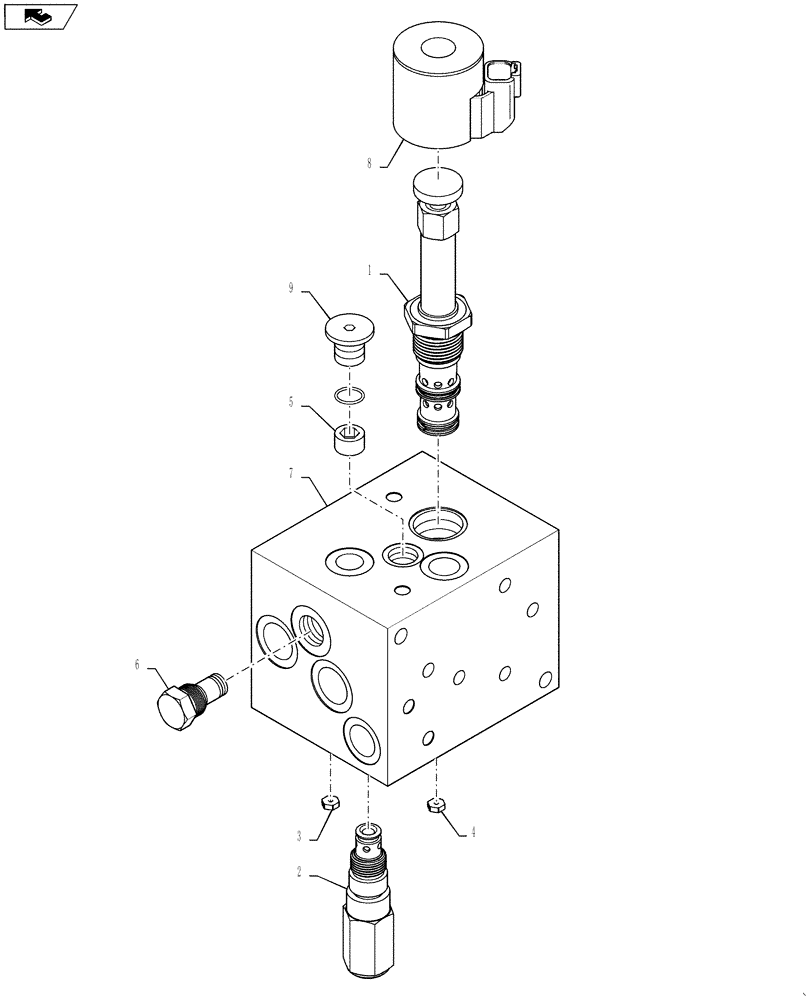

Запчасти Case IH 9230 (35.440.06[04]) - MANIFOLD, STANDARD COVERS, POWER EXTENSIONS BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84227086

SOLENOID VALVE

1шт.

1

84227088

SEAL KIT

Not shown for Ref 1

1шт.

2

84385565

VALVE PRESSURE RELIE

1шт.

3

84227092

ORIFICE

Orifice Plate, .035

1шт.

4

84227093

ORIFICE

Orifice Plate, .025

1шт.

5

87227094

ORIFICE

Orifice Plate, .033

1шт.

6

87269963

VALVE SECTION

Check Valve

1шт.

7

84391653

CONTROL VALVE

Shuttle Valve

1шт.

8

84227091

COIL

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

1шт.
