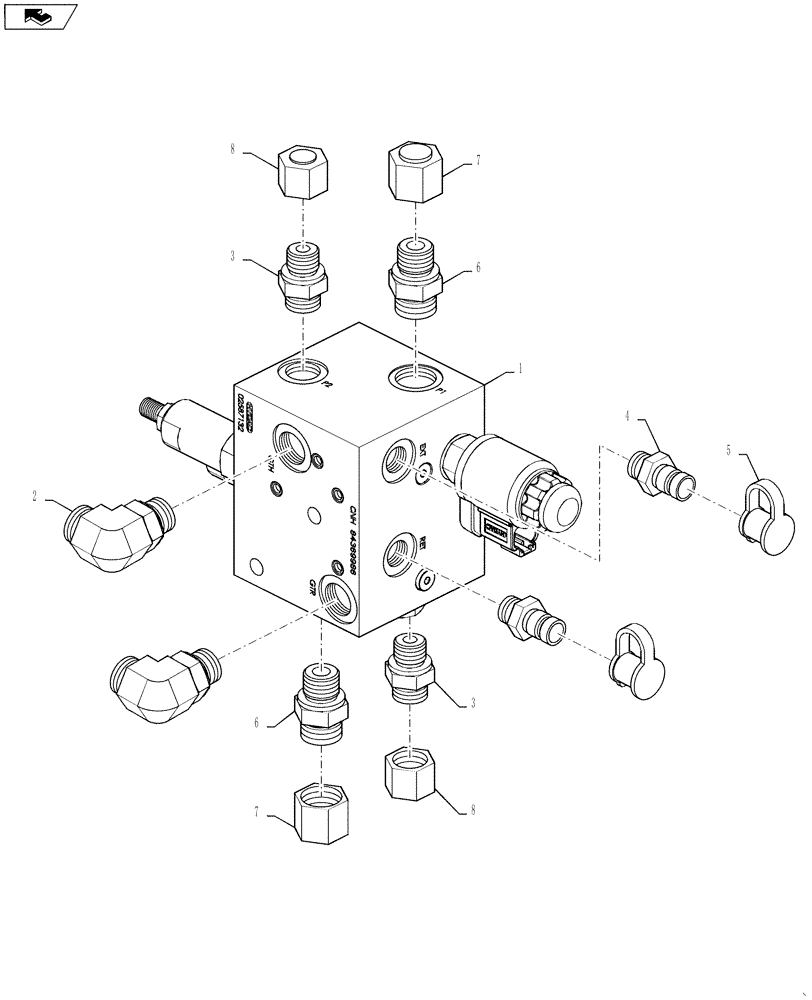

Запчасти Case IH 9230 (35.440.06[02]) - MANIFOLD, HYD, UNLOAD AUGER, HC, COVERS, POWER EXTENSIONS (35) - HYDRAULIC SYSTEMS

1

84369986

HYDRAULIC MANIFOLD

See Page 35.440.06(05)

1шт.

2

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

2шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

2шт.

4

84320565

COUPLING,M14 x 1.5

2шт.

5

86502604

DUST CAP

2шт.

6

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

7

9840575

CAP,13/16" - 16 ORFS

2шт.

8

9625546

CAP,11/16" - 16 ORFS

2шт.
