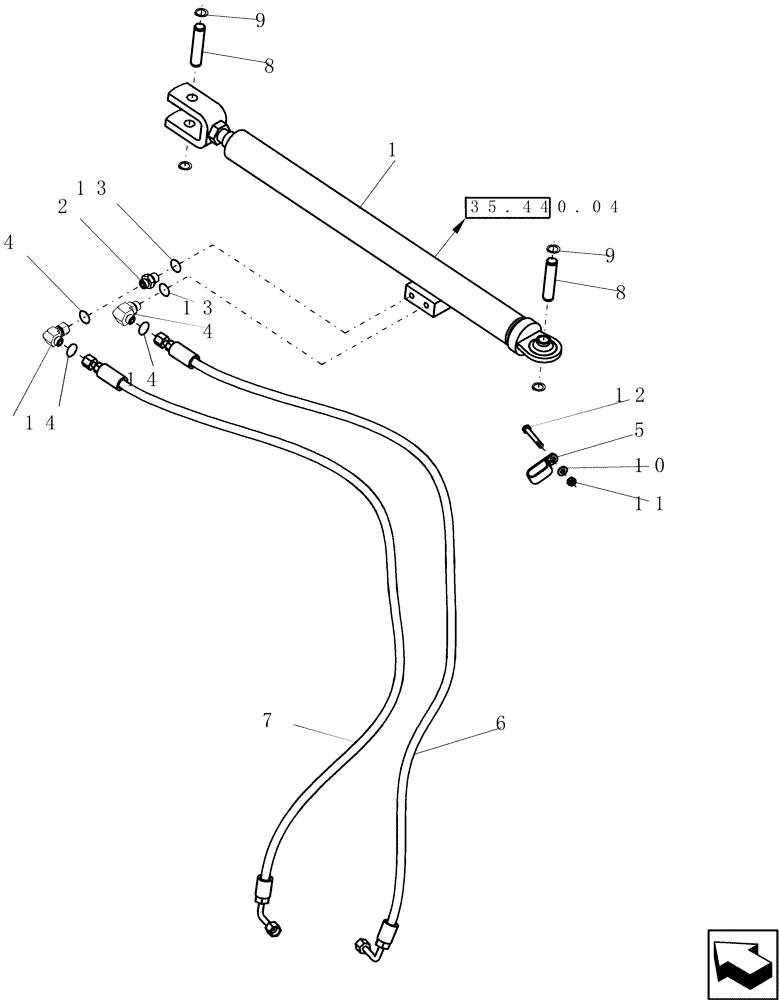

Запчасти Case IH 9230 (35.440.03) - UNLOADER SWING CYLINDER AND LINES, LC VERSION, MAN EXTENSIONS (35) - HYDRAULIC SYSTEMS

1

84126280

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke

Replaces 87645216

1шт.

1

84126280R

REMAN-HYD CYLINDER

1шт.

1

84126280C

CORE-HYD CYLINDER

Return Number

1шт.

2

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

3

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

4

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

1шт.

5

87107812

CLAMP

1шт.

6

87106483

FLEXIBLE HOSE,10mm ID x 1780mm L

Unloading Tube Swing Cylinder; L = 1780 mm

1шт.

7

87106482

FLEXIBLE HOSE

Unloading Tube Swing Cylinder; L = 1830 mm

1шт.

8

84254243

PIN,19.05mm OD x 89mm L

2шт.

9

300627

SNAP RING,M19, External

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.
