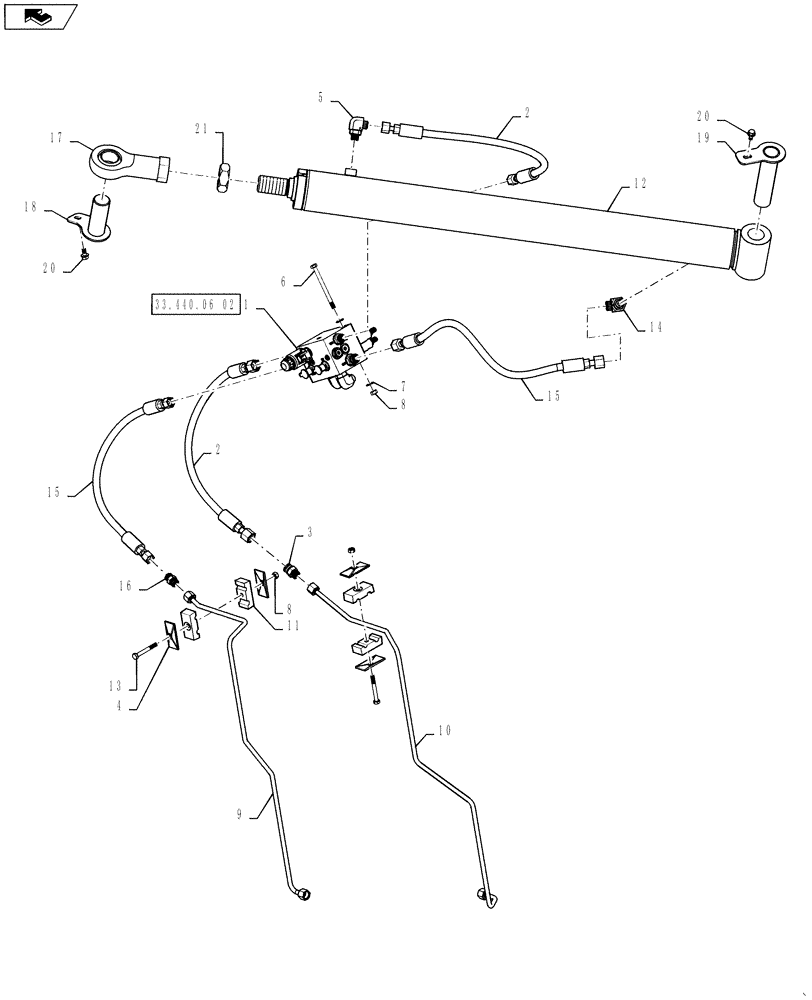

Запчасти Case IH 9230 (35.440.03[02]) - UNLOADER SWING CYLINDER AND LINES, HC VERSION, POWER EXTENSIONS & COVERS (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

1шт.

2

84204125

HOSE ASSY.

4шт.

3

84431546

UNION,11/16"-16 ORFS

2шт.

4

87000230

PLATE

6шт.

5

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

1шт.

6

16045321

BOLT,Hex, M8 x 1.25 x 105mm, Cl 8.8

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

9706690

NUT,M8 x 1.25, Cl 8

4шт.

9

84319512

HYD TUBE

1шт.

10

84319514

HYD TUBE

1шт.

11

87105732

CLAMP

2шт.

12

84378292

CYLINDER,Double Acting, 55mm Rod, 329mm Stroke

Unload Swing

1шт.

84392641

SEAL KIT

Services 12

1шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

14

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

15

84398113

HYDRAULIC HOSE

2шт.

16

84431472

HYD CONNECTOR,13/16"-16 ORFS x 11/16"-16 ORFS

1шт.

17

84383877

CLEVIS,1-1/2" - 12

1шт.

18

84383243

PIN,37.65mm OD x 106mm L

1шт.

19

84390135

PIN,37.65mm OD x 160mm L

1шт.

20

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

21

6368

JAM NUT,1-1/2"-12, Cl 5

1шт.
