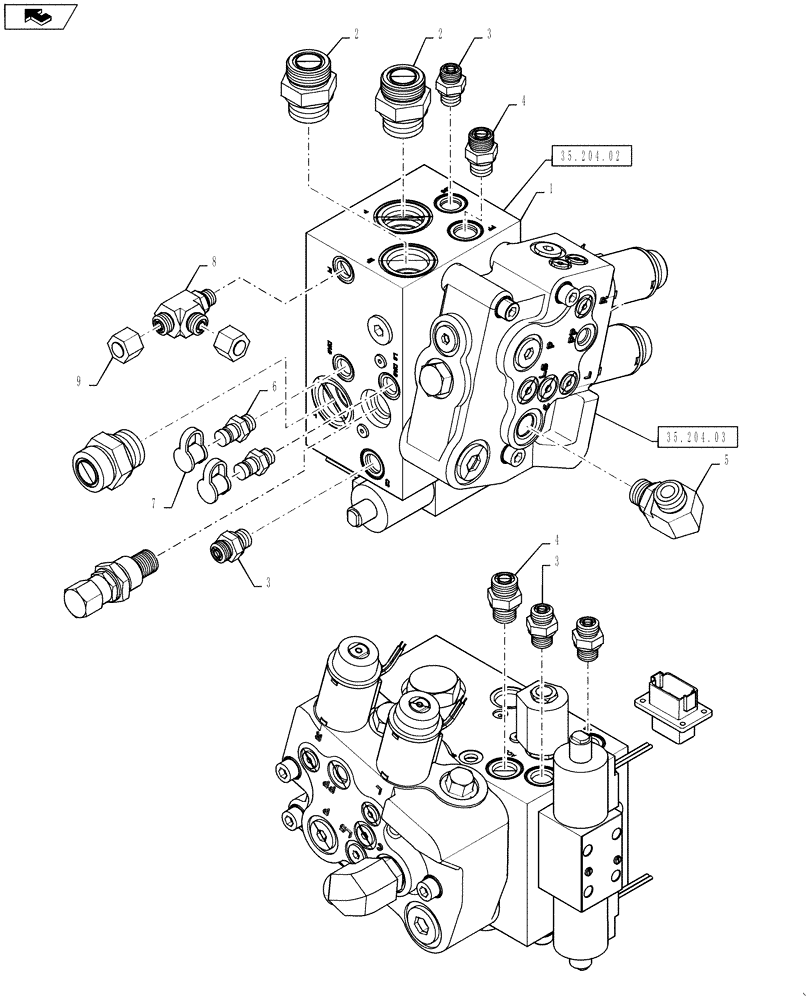

Запчасти Case IH 9230 (35.204.09) - HYDRAULIC MAIN VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84347335

HYDRAULIC MANIFOLD

Main Hydraulic Valve

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

3шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

4шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

6

84320565

COUPLING,M14 x 1.5

2шт.

7

86502604

DUST CAP

2шт.

8

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

9

9625546

CAP,11/16" - 16 ORFS

2шт.
