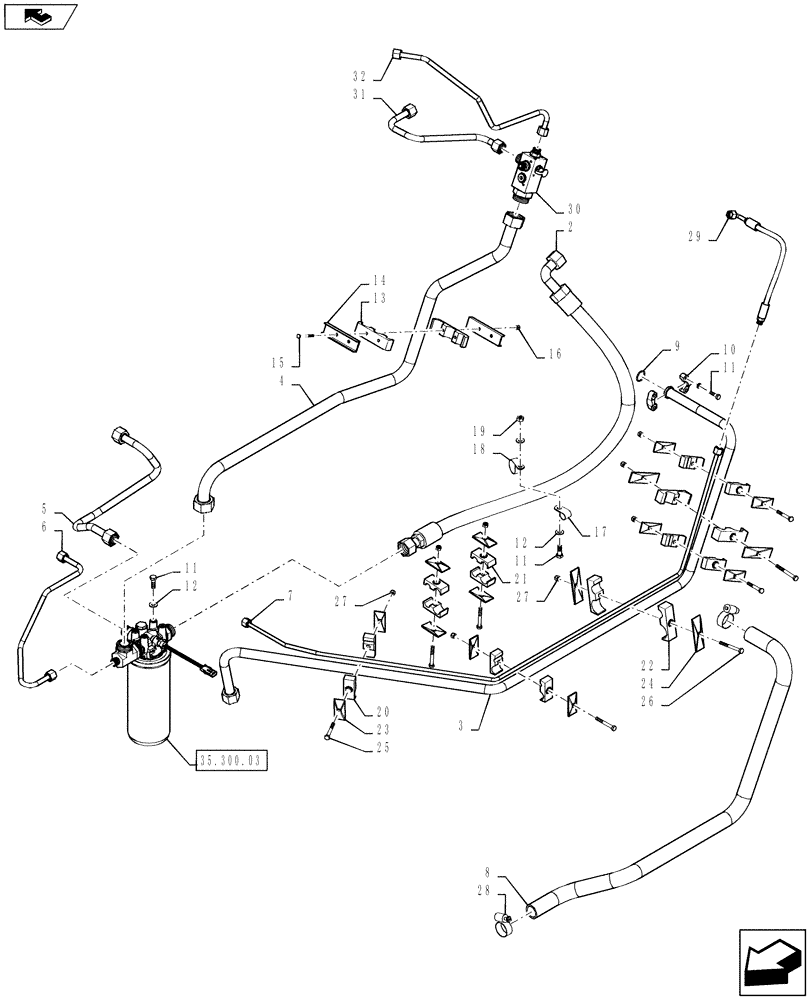

Запчасти Case IH 9230 (35.200.02) - HYDRAULICS- PTO(2) (35) - HYDRAULIC SYSTEMS

1

0C

ORDER COMPONENTS

*Not Available Complete, Order Components*

1шт.

2

87283082

FLEXIBLE HOSE

Pump To Filter AF7

1шт.

3

87721406

TUBE,1" OD

PFC To Main Valve

1шт.

4

87670280

HYD TUBE,32 mm OD x 538.5 mm L

Charge Filter To Manifold

1шт.

5

87657698

HYD TUBE,0.75" OD

Charge Filter To Bypass

1шт.

6

87657697

HYD TUBE,0.5" OD

Charge Filter To Valve

1шт.

7

84222269

TUBE

Load Sense To PFC

1шт.

8

84159425

HYDRAULIC HOSE

Filter To PFC Inlet

1шт.

9

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

10

86980728

COLLAR CLAMP

2шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

9шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

13

455533

CLAMP

2шт.

14

87283294

CHANNEL

2шт.

15

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

2шт.

17

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

18

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

100016

NUT,M10 x 1.5, Cl 8

1шт.

20

87000142

CLAMP,2 Hoses

4шт.

21

87000146

CLAMP

2шт.

22

84214028

HOSE CLAMP

2шт.

23

87000230

PLATE

12шт.

24

87000231

PLATE

4шт.

25

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

6шт.

26

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

28

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

2шт.

29

84250583

HOSE ASSY.,6.35mm ID x 550mm L, SAE 100R17

PFC To LS Tube

1шт.

30

87710068

MANIFOLD

Control Pressure Distribution

1шт.

31

84131660

TUBE ASSY.

Charge To Propulsion Pump

1шт.

32

87709559

HYD TUBE,0.5" OD

Charge To Rotor Pump

1шт.
