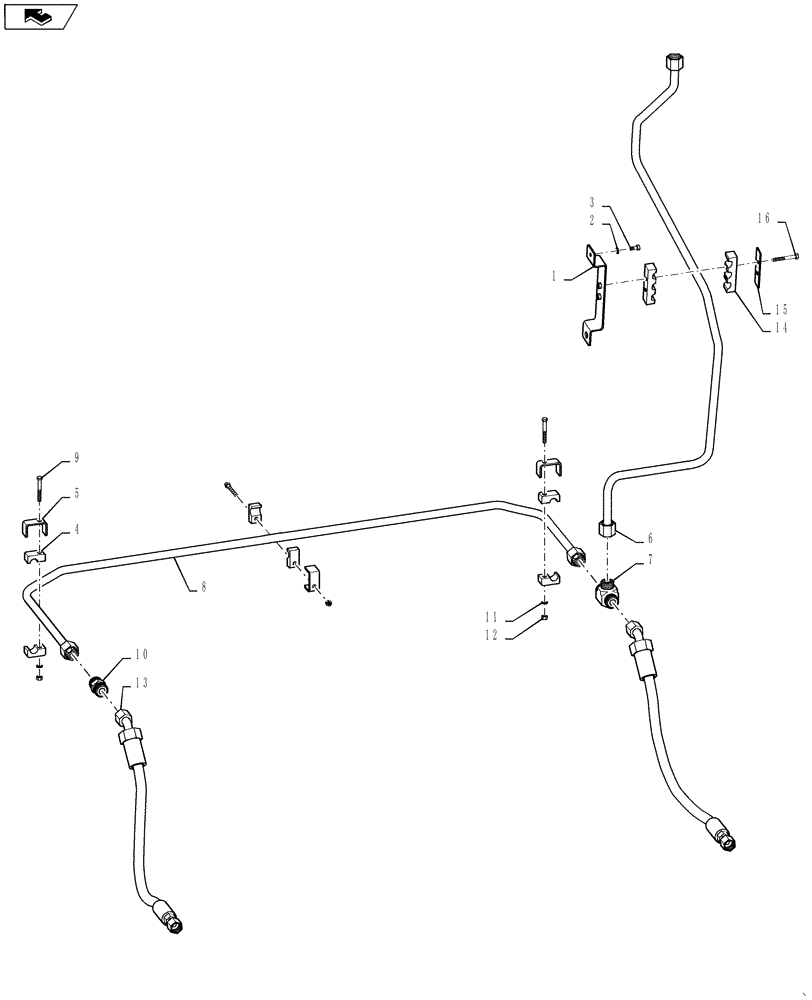

Запчасти Case IH 9230 (35.162.01) - HYDRAULICS FEEDER LIFT (35) - HYDRAULIC SYSTEMS

1

87281787

SUPPORT TUBE

Feeder Lift Tube Support Bracket

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

4

433007

CLAMP

6шт.

5

433100

SUPPORT

3шт.

6

87000417

HYD TUBE,0.625" OD

Feeder Lift Mid

1шт.

7

84989665

TEE,1"-14 ORFS

1шт.

8

87000419

HYD TUBE,0.625" OD

Feeder Lift Lower

1шт.

9

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

3шт.

10

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

12

353308

NUT,M6 x 1.0, Cl 8

3шт.

13

87105740

FLEXIBLE HOSE,12.5mm ID x 625mm L

Feeder Lift Cylinder Hose

2шт.

14

84332223

RUBBER PAD

1шт.

15

84340688

PLATE

1шт.

16

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

17

84442647

SAFETY VALVE

EU only, Not Shown

1шт.
