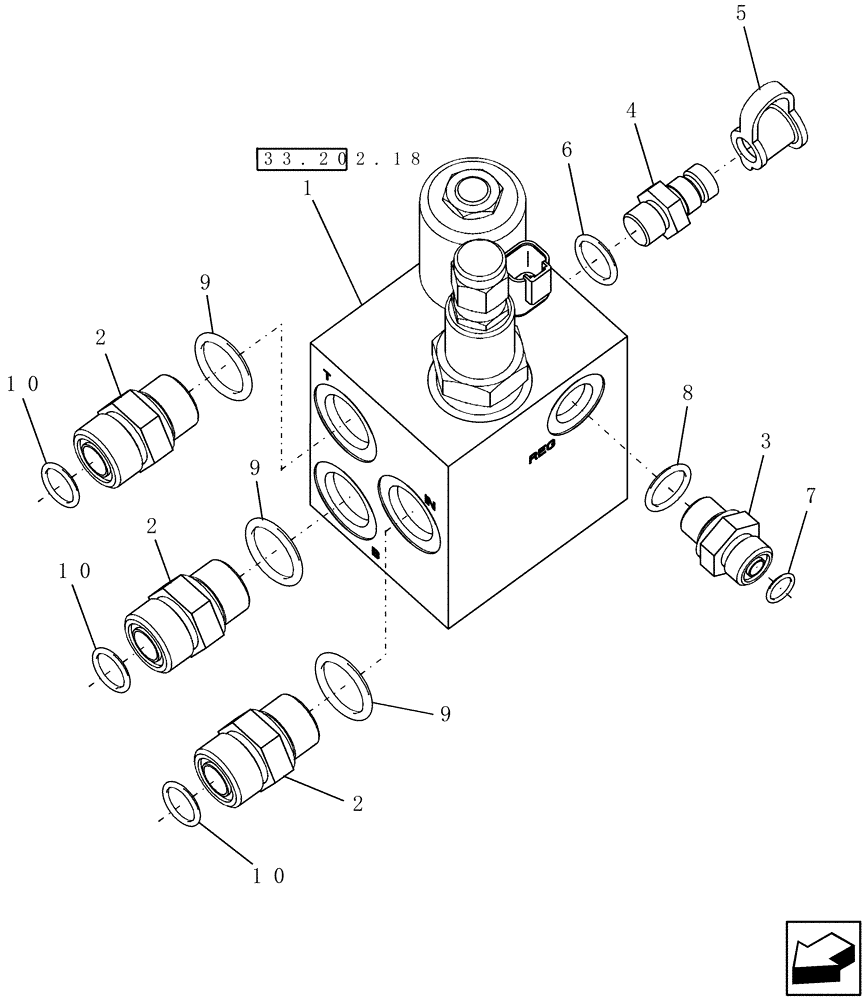

Запчасти Case IH 9230 (33.202.19) - VALVE, HYDRAULIC, PARK - CONNECTORS (33) - BRAKES & CONTROLS

1

87708879

MANIFOLD

Hyd

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl Refs 9 & 10

3шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl Refs 7 & 8

1шт.

4

84320565

COUPLING,M14 x 1.5

Incl Ref 6

1шт.

5

86502604

DUST CAP

1шт.

6

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.
