Запчасти Case IH 9230 (33.202.04) - SERVICE BRAKES (33) - BRAKES & CONTROLS

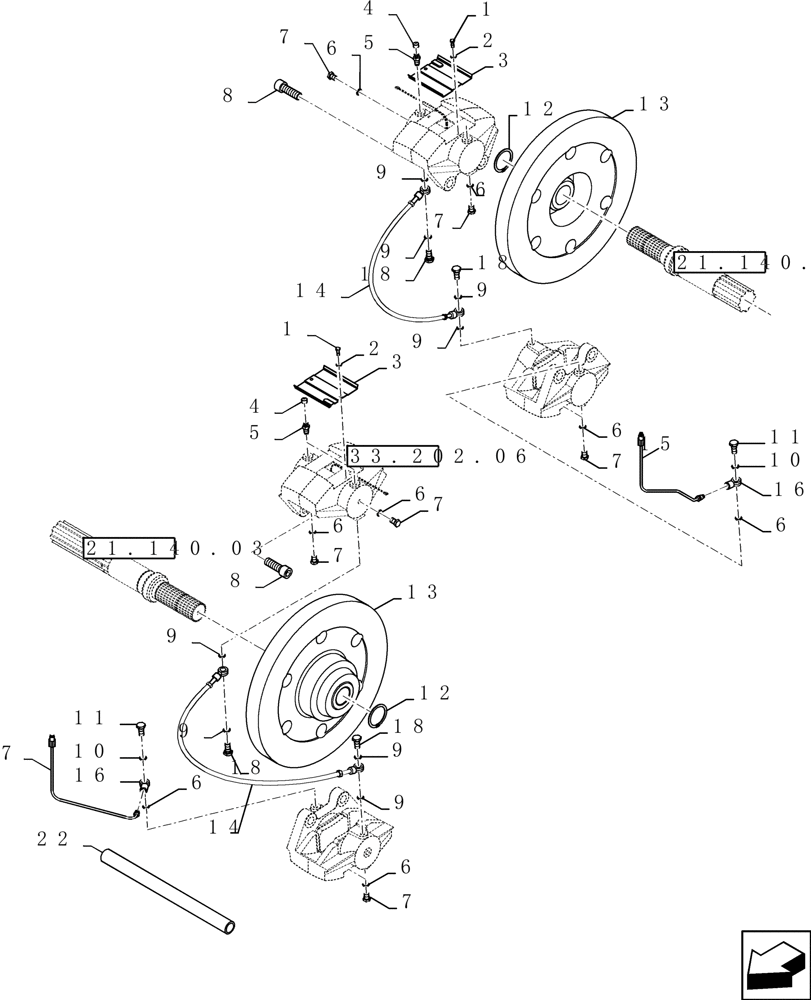

Схема запчастей Case IH 9230 - (33.202.04) - SERVICE BRAKES (33) - BRAKES & CONTROLS
5
13
10
11
1
22
12
9
7
6
4
2
17
9
8
2
6
4
16
6
7
21.140.03
33.202.06
21.140.03
13
6
9
14
5
9
9
1
3
18
18
7
6
15
18
7
9
7
9
16
6
11
8
3
7
9
12
6
18
6
14
10

Артикул

Название

Примечание

Количество

1

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

2

80322356

WASHER

M5

4шт.

3

84004317

PLATE

2шт.

4

89835349

CAP

Seal

4шт.

5

89832308

SCREW

Vent

4шт.

6

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

10шт.

7

89832307

SCREW

Sealing

8шт.

8

89817243

SCREW

Cylinder Hd

8шт.

9

84449206

RING,10.2mm ID x 13.4mm OD x 1mm Thk

8шт.

10

80355607

SEALING RING

SEALRING

2шт.

11

89832304

BANJO BOLT

Hollow

2шт.

12

370007

SNAP RING,M45, Ext

2шт.

13

84071143

BRAKE DISC,330mm OD

Dia. = 330 mm; For 16/71 Differential Only

2шт.

13

84071125

BRAKE DISC

Dia. = 400 mm; For 20/61 Differential Or 16/71 W/Diff Lock (8120 Service Only)

2шт.

14

84447450

BRAKE LINE,360mm L

L = 360 mm

2шт.

15

84801453

BRAKE LINE

For 16/71 Differential

1шт.

15

87330717

BRAKE LINE

For 20/61 Differential

1шт.

16

9832303

FITTING

2шт.

17

84801451

BRAKE LINE

For 16/71 Differential; Unfolded Length: 342.3 mm

1шт.

17

87330720

BRAKE LINE,4.75 mm DIA

For 20/61 Differential; Unfolded Length: 377.3 mm

1шт.

18

84449205

BANJO BOLT,M10 x 1 x 17mm

4шт.

22

87486643

PROTECTIVE SLEEVE

For Brake Line Hoses

2шт.

Выбрано товаров: 22
