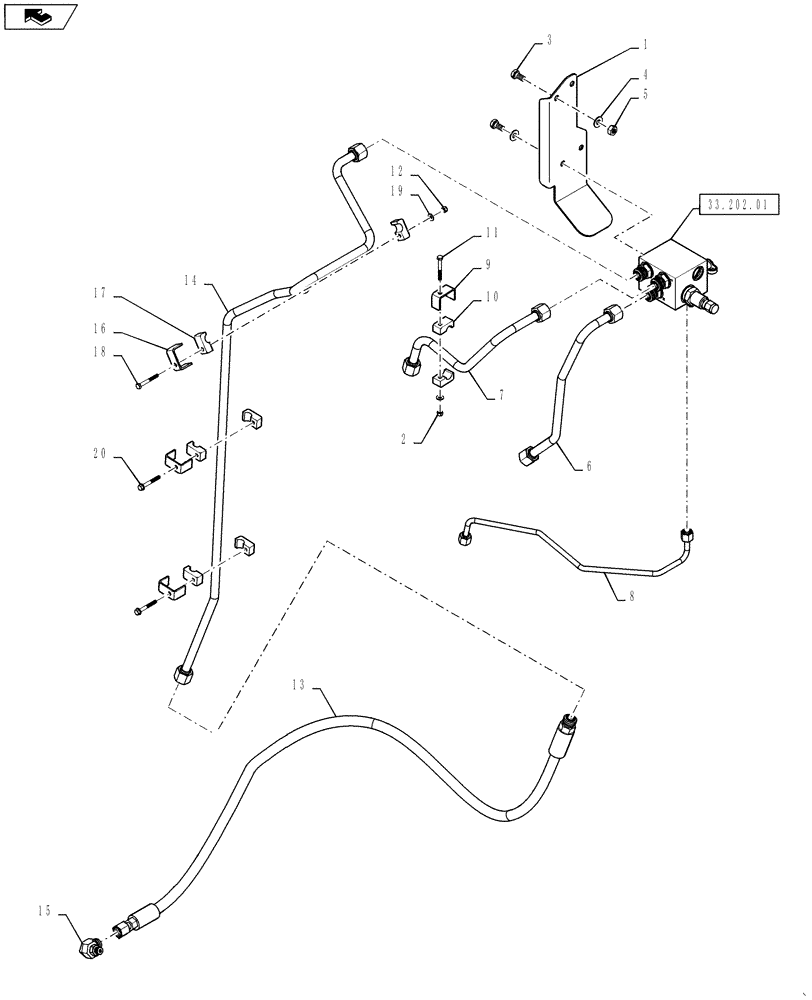

Запчасти Case IH 9230 (33.202.03) - HYDRAULICS BRAKE CONTROL LINES (33) - BRAKES & CONTROLS

1

84346086

BRACKET

1шт.

2

353308

NUT,M6 x 1.0, Cl 8

1шт.

3

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

84325017

HYD TUBE

Park/Reg Valve Supply

1шт.

7

84325015

HYD TUBE

Park/Reg Drain

1шт.

8

84325013

HYD TUBE

Regulated Pressure

1шт.

9

87000159

CLAMP

1шт.

10

72180326

PLATE

2шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

13

87280111

HOSE

Park Brake Supply

1шт.

14

84325011

HYD TUBE

Park Brake Work

1шт.

15

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

16

430356

CLAMP

6шт.

17

84814948

SUPPORT

3шт.

18

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

87028761

SELF-TAP SCREW,6.3mm OD x 1.8 x 50mm

2шт.
