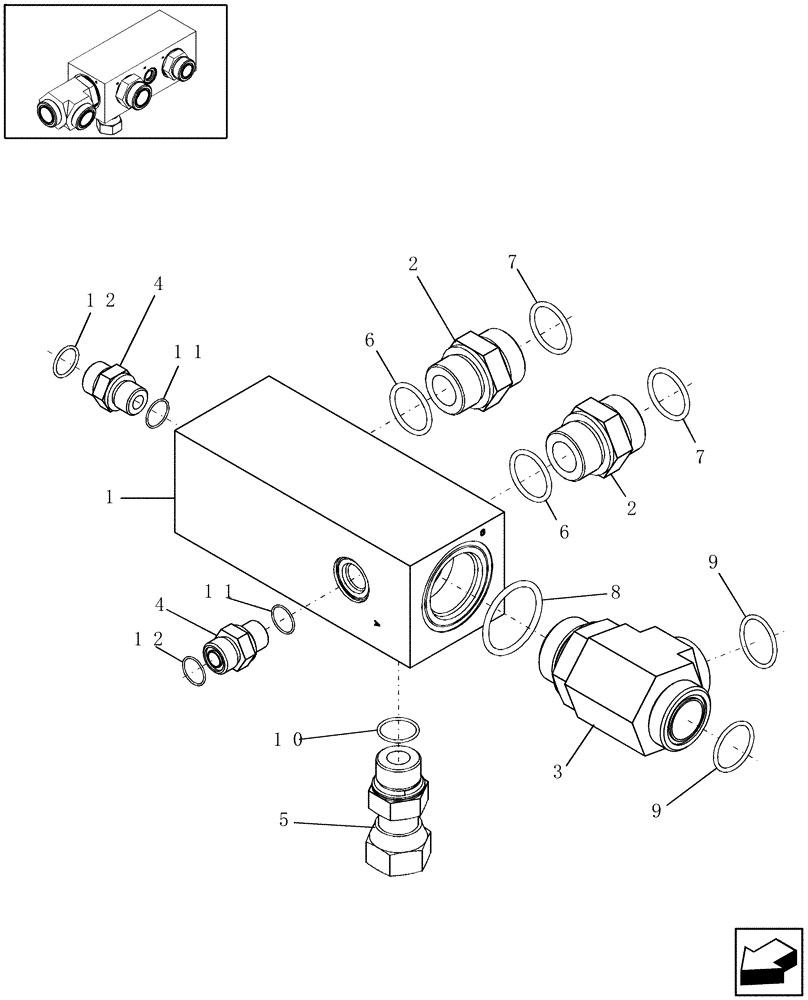

1
87611498
MANIFOLD
1шт.
2
86580179
HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB
Includes Ref 6 (1) & Ref 7 (1)
2шт.
3
86579708
TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB
Includes Ref 8 (1) & Ref 9 (2)
1шт.
4
86579676
HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB
Includes Ref 11 (1) & Ref 12 (1)
2шт.
5
86998396
FITTING
Includes Ref 10
1шт.
6
86598104
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
2шт.
7
9824050
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
2шт.
8
86598105
O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro
1шт.
9
9824051
O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro
2шт.
10
86598103
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
11
86598101
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
2шт.
12
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
