Запчасти Case IH 9230 (29.204.05) - HYDRO DRIVE (29) - HYDROSTATIC DRIVE

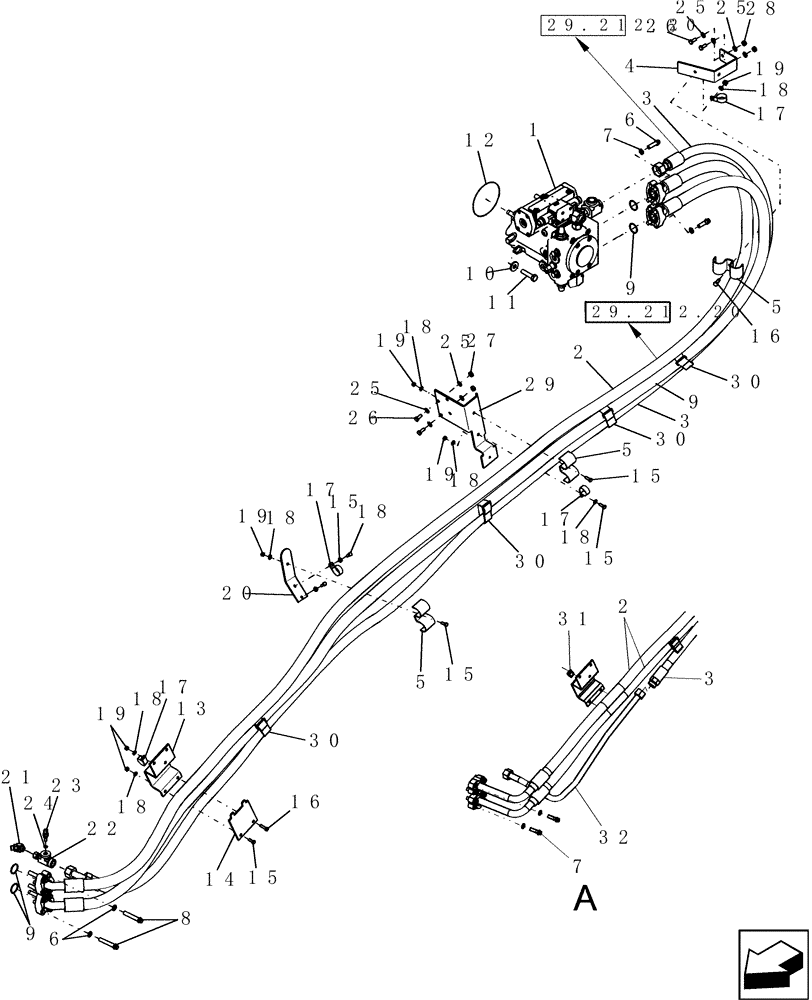

Схема запчастей Case IH 9230 - (29.204.05) - HYDRO DRIVE (29) - HYDROSTATIC DRIVE
16
5
14
15
3
26
13
29
20
3
7
18
7
10
30
6
6
23
25
25
18
31
17
19
26
29.212.20
28
18
9
18
25
22
18
16
15
15
18
29.212.20
24
9
17
3
19
15
19
18
30
11
17
19
25
32
1
18
15
8
17
12
21
2
9
30
2
30
4
27
5
5
19

Артикул

Название

Примечание

Количество

1

87634754

HYDROSTATIC PUMP,125 CC

1шт.

1

87634754R

REMAN-HYD PUMP

REMANUFACTURED HYD PUMP

1шт.

1

87634754C

CORE-HYDRAULIC PUMP

Return Number, HYD PUMP

1шт.

2

84162945

HOSE ASSY.,31.5mm ID x 5280mm L

Ground Drive High Pressure

2шт.

3

84170752

HOSE ASSY.,25.4mm ID x 4505mm L, SAE 100R1

Ground Drive Case Drain

1шт.

4

87675164

BRACKET

Upper Hydro Drive Hose

1шт.

5

84444101

CLAMP

3шт.

6

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

16шт.

7

87680393

12 PT SCREW,M14 x 2 x 45mm, Cl 12.9

8/16шт.

8

87680391

12 PT SCREW,M14 x 2 x 80mm, Cl 12.9

8шт.

9

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

4шт.

10

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

11

87303611

BOLT,Hex, M16 x 65mm, Cl 10.9

4шт.

12

87017583

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

1шт.

13

84069548

PLATE

1шт.

14

84069549

PLATE

1шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

17

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

19

9706690

NUT,M8 x 1.25, Cl 8

6шт.

20

87109782

BRACKET

1шт.

21

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

22

87668483

ORIFICE

Fitting, Tee

1шт.

23

86571273

SENSOR

1шт.

24

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

27

100016

NUT,M10 x 1.5, Cl 8

4шт.

28

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

29

87655614

BRACKET

1шт.

30

87108048

SECURING STRAP

4шт.

31

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

84169441

HYD TUBE,25 mm OD

Hyd Motor Case Drain

1шт.

Выбрано товаров: 34
