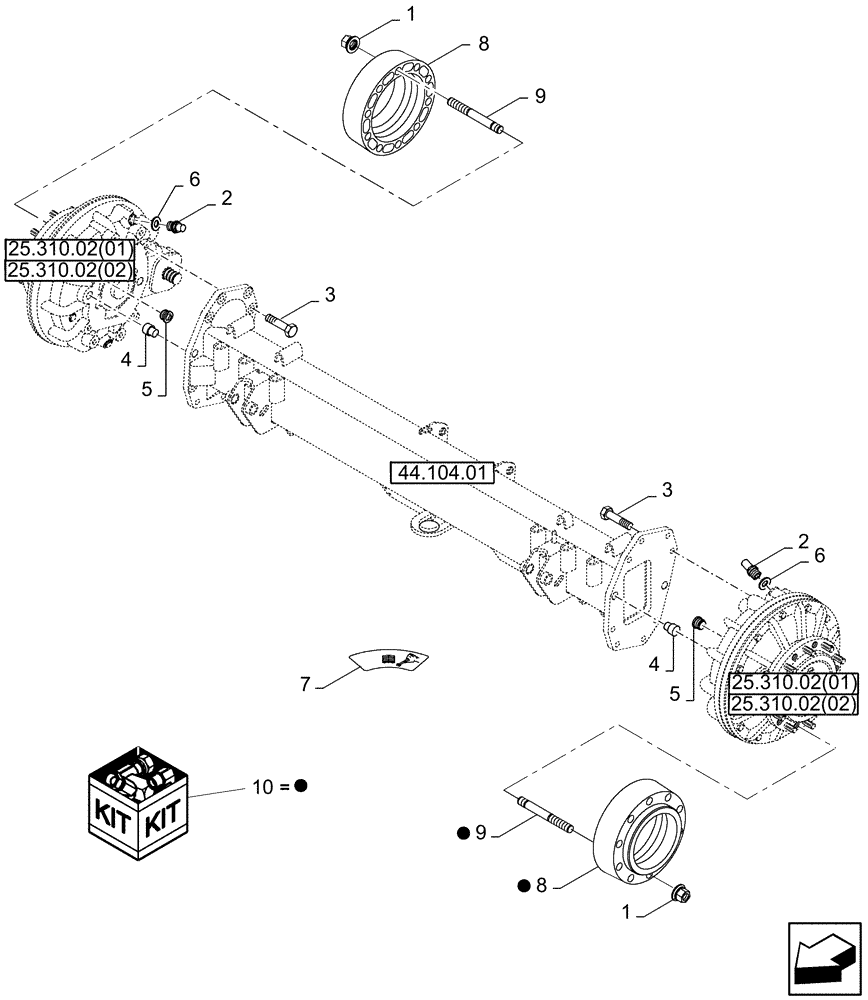

Запчасти Case IH 9230 (25.310.05) - FINAL DRIVE, PLANETARY, MOUNTING HARDWARE (25) - FRONT AXLE SYSTEM

1

748961

WHEEL NUT

20шт.

2

84068655

BREATHER

2шт.

Planetary Drive

1шт.

2

386287

BREATHER

2шт.

Standard Drive

1шт.

3

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

16шт.

4

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

5

84817215

PLUG,3/4"

2шт.

6

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

2шт.

Planetary Drive

1шт.

6

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

Standard Drive

1шт.

7

87283497

DECAL

2шт.

8

84989374

SPACER

2шт.

9

84989380

STUD,M22 x 192

20шт.

10

84060286

DIA KIT, HARVESTER

Incl Ref 8 (2) & Ref 9 (20)

1шт.
