Запчасти Case IH 9230 (25.310.03[02]) - FINAL DRIVE, STANDARD, EU AND NA W/TRACKS 13/110 AND 16/107 RATIO (25) - FRONT AXLE SYSTEM

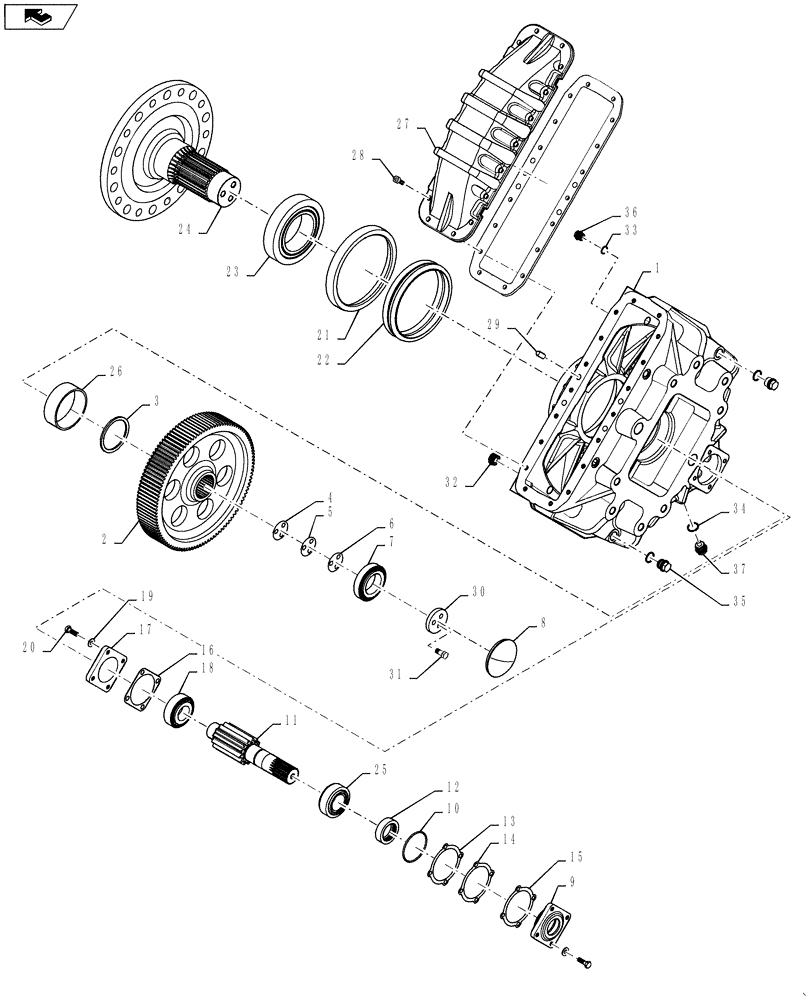

Схема запчастей Case IH 9230 - (25.310.03[02]) - FINAL DRIVE, STANDARD, EU AND NA W/TRACKS 13/110 AND 16/107 RATIO (25) - FRONT AXLE SYSTEM
9
33
30
5
15
10
27
18
32
home
37
17
19
14
12
26
16
7
28
24
23
35
3
20
21
11
29
22
13
34
4
1
8
31
2
6
25
36

Артикул

Название

Примечание

Количество

1

84412772

HOUSING

Housing, Final Drive, EU and NA W/Tracks

1шт.

2

87740502

GEAR

Driven, 110 Tooth

1шт.

2

87734566

GEAR

Driven, 107 Tooth

1шт.

3

613200

SPACER,M84 ID x 98.5mm OD x 4.6mm H

1шт.

4

395393

SHIM,45mm ID x 75mm OD x 0.5mm Thk

1шт.

5

395392

SHIM,45mm ID x 75mm OD x 0.2mm Thk

1шт.

6

395391

SHIM,45mm ID x 75mm OD x 0.05mm Thk

1шт.

7

86975646

TAPERED BEARING,82.55mm ID x 139.99mm OD x 36.51mm W

1шт.

8

613201

COVER,153.5mm OD x 42.1mm W

Hub Cap

1шт.

9

84390494

FLANGE

Cover, Final Drive

1шт.

10

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

11

87740501

GEAR

Drive, 13 Tooth

1шт.

11

84514130

DRIVING GEAR

Drive, 16 Tooth

1шт.

12

5169122

SEAL,45mm ID x 65mm OD x 18.5mm Thk

1шт.

13

382948

SHIM,89.7mm ID x 108mm OD x 0.05mm Thk

1шт.

14

382949

SHIM,89.7mm ID x 108mm OD x 0.2mm Thk

1шт.

15

382950

SHIM,89.7mm ID x 108mm OD x 0.5mm Thk

1шт.

16

410920

GASKET,0.9mm Thk

1шт.

17

613212

BEARING COVER

1шт.

18

86975647

TAPERED BEARING,41.27mm ID x 85.72mm OD x 30.16mm W

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

21

9818670

RING,197.55mm ID x 230mm OD x 24.6mm Thk

1шт.

22

9509555

SEAL KIT,184.91mm ID x 215.56mm OD x 38.6mm Thk

1шт.

23

86975648

TAPERED BEARING,104.78mm ID x 180.98mm OD x 47.63mm W

1шт.

24

87392845

FLANGE

1шт.

25

86500888

BEARING ASSY,45mm ID x 85mm OD x 32mm W

1шт.

26

84814999

SPACER,105.01mm ID x 114.81mm OD x 39.22mm L

1шт.

27

84129520

COVER

1шт.

28

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

18шт.

29

86978768

DOWEL,M12 x 30mm L

2шт.

30

382503

WASHER,Special, 17mm ID x 95mm OD x 14mm Thk

1шт.

31

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

3шт.

32

84071596

PLASTIC PLUG,M31 x 19mm

Level Gauge

2шт.

33

9511034

SEAL

2шт.

34

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

4шт.

35

150006

DRAIN PLUG,M24 x 1.5

3шт.

36

412413

PLUG,M18 X 1.5

2шт.

37

336897

PLUG,M24 x 1.5

Magnetic

1шт.

Выбрано товаров: 39
