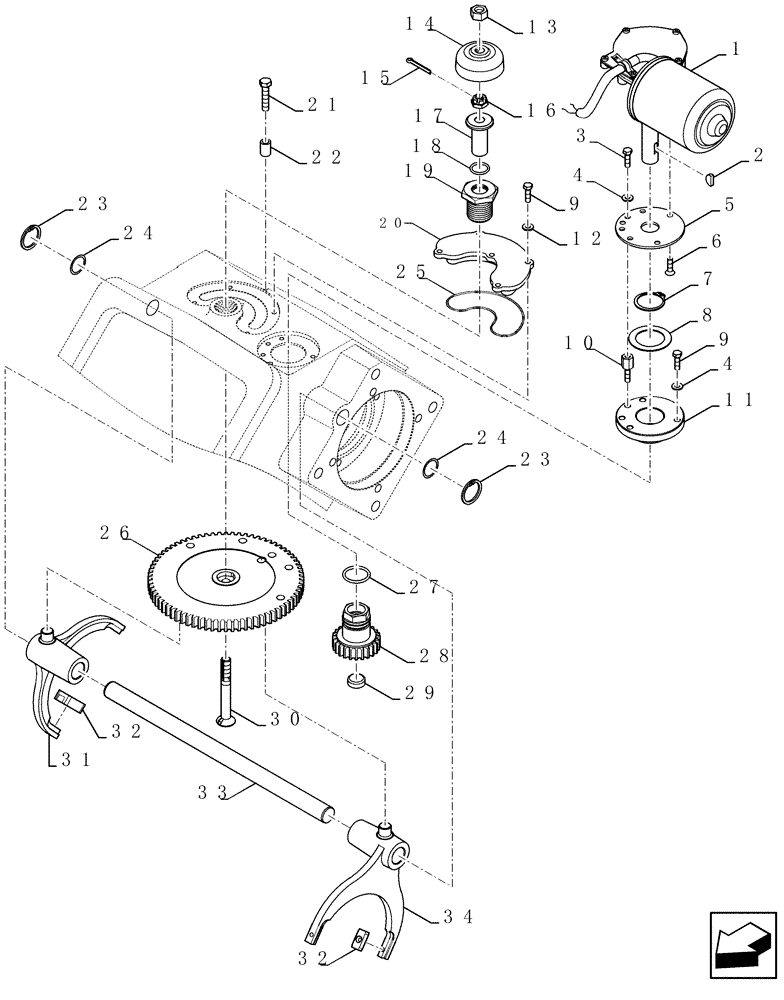

Запчасти Case IH 9230 (21.130.03) - MECHANICAL TRANSMISSION, GEARSHIFT CONTROL (21) - TRANSMISSION

1

84807563

ELECTRIC MOTOR

1шт.

84807563R

REMAN-ELECTRIC MOTOR

7230 ,9230,Both TIER 4 (3/12-),8230 TIER 4

1шт.

84807563C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

84041731

WOODRUFF KEY,5mm W x 6.5mm H x 16mm L

1шт.

3

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

5

84071166

DISC

1шт.

6

300497

SCREW,Hex Soc Flat Hd, M6 x 16, 8.8

3шт.

7

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

8

442245

WASHER,35mm ID x 51.5mm OD x 0.8mm Thk

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

10

84071865

SCREW,Hex, M6 x 15mm

Distance

4шт.

11

87588654

SPACER

1шт.

12

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

5шт.

13

9706685

NUT,M12 x 1.75, Cl 8

1шт.

14

84072087

LID

1шт.

15

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

16

84334523

SLOTTED NUT,M14 x 1.5, Cl 8

1шт.

17

84334799

BUSHING,12mm ID x 35mm OD x 51mm L

1шт.

18

304967

O-RING,2.5mm Thk x 20mm ID, Cl 6, 90 Duro

1шт.

19

84071821

THREADED INSERT

1шт.

20

84457942

SENSOR

Mechanical Transmision Gearshift Control (25)

1шт.

20

84269118R

REMAN-SENSOR

7230, 8230, 9230, All COMBINE - TIER 4, Mechanical Transmission Gearshift Control (25) (3/12-), Reman for New PN 84457942

1шт.

20

84269118C

CORE-SENSOR

Return Number

1шт.

21

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

22

84038824

BUSHING,9mm ID x 12mm OD x 20mm L

1шт.

23

84078050

SNAP RING,M22, Int

2шт.

24

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

25

84042797

O-RING

1шт.

26

84607593

GEAR

1шт.

27

84021955

O-RING,3mm Thk x 29.2mm ID, 90 Duro

1шт.

28

87591787

GEAR

1шт.

29

396661

PLUG,22mm OD

1шт.

30

84334394

BOLT,CSK, M12 x 90mm

1шт.

31

84071587

SHIFTER FORK

1шт.

32

84432249

GUIDE

4шт.

33

84071538

SHAFT

1шт.

34

84071378

SHIFTER FORK

1шт.
