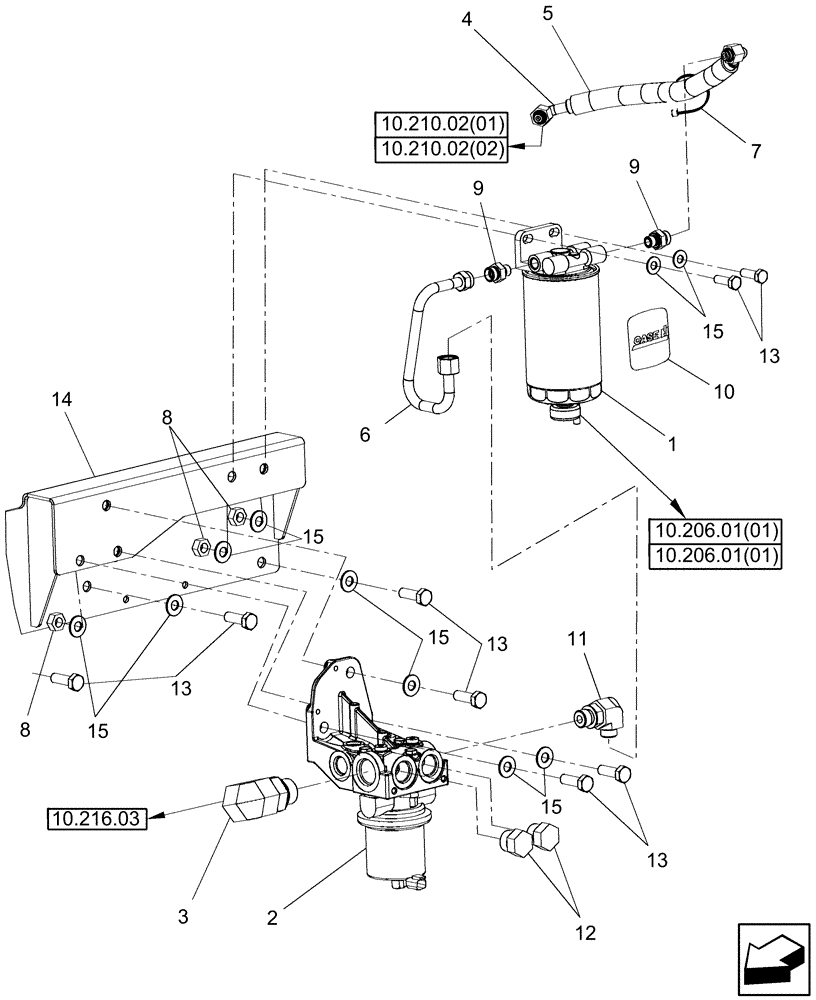

Запчасти Case IH 9120 (10.114.02) - FUEL SYSTEM, PUMP AND FILTER (10) - ENGINE

1

0C

ORDER COMPONENTS

Filter, Fuel; With Sensor 87519307

1шт.

7120 Only

1шт.

1

0C

ORDER COMPONENTS

Filter, Fuel; With Sensor 87525715

1шт.

8120 & 9120 Only

1шт.

2

87676818

FUEL PUMP,12V, 4.5A

1шт.

3

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

4

87728315

HOSE

Fuel

1шт.

5

87743277

CONDUIT

1шт.

6

87728316

FUEL TUBE,.5" OD

Fuel

1шт.

7

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

5шт.

9

84431916

FITTING

2шт.

10

87679098

DECAL,37mm x 70mm

Case IH, Red "i", No Underline

1шт.

11

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

12

86512512

PLUG,7/8" - 14 ORB

2шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

14

87734863

PLATE ASSY.

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.
