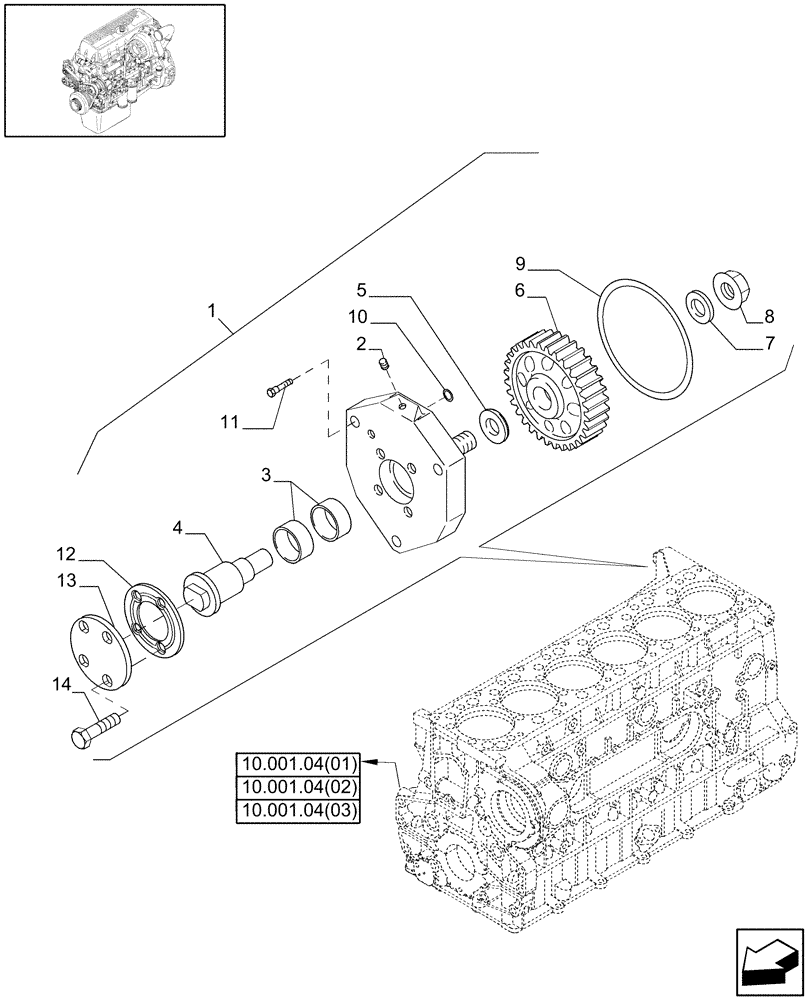

Запчасти Case IH 9120 (10.114.01[03]) - AUX. DRIVE COVER AND GEAR - 9120 (10) - ENGINE

1

500382578

SUPPORT

Incl Refs 2 Thru 14

1шт.

2

504051236

PLUG,Threaded, 1/8"

D = 1/8"

1шт.

3

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Shaft, PTO

1шт.

5

500351319

LOCK WASHER

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

1шт.

7

500382574

LOCK WASHER

1шт.

8

17046231

NUT

1шт.

9

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D = 126.59 x 3.53 mm

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

D = 9.19 mm

1шт.

11

16678135

SCREW,M12 x 45mm

M12 x 45

3шт.

12

500355018

GASKET

1шт.

13

500355019

COVER

1шт.

14

18139424

SCREW,Hex, M10 x 20mm

M10 x 20

4шт.
